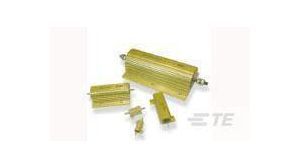

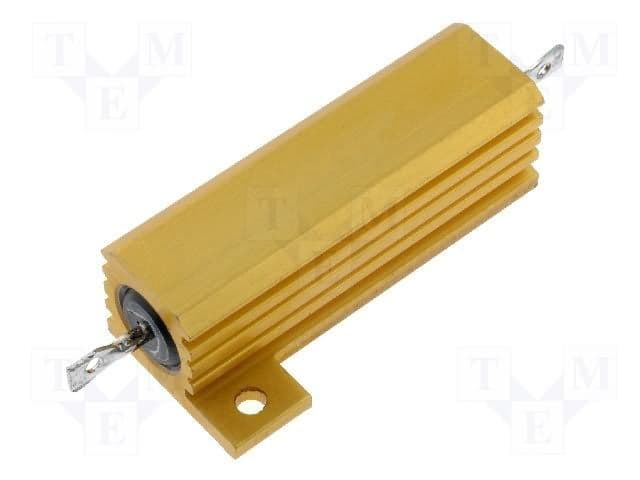

Chassis mount wirewound power resistor with 0.22 Ohm resistance and 5% tolerance. Features 50W maximum power dissipation and a 1.25kV voltage rating. Operating temperature range from -55°C to 200°C. Aluminum housed with axial terminations for chassis mounting.
PackageAluminum
Resistance220mR
Voltage Rating1.25kV
MountingChassis Mount
Quick Jump:
Technical Specifications
TE Connectivity HSA50R22J technical specifications.
General
Package/Case
Aluminum
Depth
30mm
ELV
Compliant
Height
17mm
Lead Free
Lead Free
Lead/Base Style
Fixed
Length
51mm
Max Operating Temperature
200°C
Military Standard
Not
Min Operating Temperature
-55°C
Max Power Dissipation
50W
Mount
Chassis Mount
Number of Resistors
1
Number of Terminations
2
Operating Supply Voltage
1.25kV
Package Quantity
100
Packaging
Tray
Radiation Hardening
No
Reach SVHC Compliant
No
Resistance
220mR
Resistance Tolerance
5%
Resistor Type
Wirewound, Power resistor
RoHS Compliant
Yes
Series
HS, CGS
Technology
WIRE WOUND
Termination
Solder
Tolerance
5%
Voltage Rating
1.25kV
Voltage Rating (AC)
1.25kV
DC Rated Voltage
1.25kV
Width
30mm
Compliance
RoHS
Compliant
Datasheet
TE Connectivity HSA50R22J Datasheet
Download the complete datasheet for TE Connectivity HSA50R22J to view detailed technical specifications.
