10W wirewound power resistor with 1.5kR resistance and 5% tolerance. Features chassis mount design with solder terminations and an aluminum package. Operates across a -55°C to 200°C temperature range with a maximum power dissipation of 10W and a voltage rating of 160V. RoHS compliant.
PackageAluminum
Resistance1.5kR
Voltage Rating160V
MountingChassis Mount
Quick Jump:
Technical Specifications
TE Connectivity HSA51K5J technical specifications.
General
| Package/Case | Aluminum |
| Depth | 17mm |
| ELV | Compliant |
| Height | 9mm |
| Lead/Base Style | Fixed |
| Length | 17mm |
| Max Operating Temperature | 200°C |
| Max Power Dissipation | 10W |
| Military Standard | Not |
| Min Operating Temperature | -55°C |
| Mount | Chassis Mount |
| Number of Resistors | 1 |
| Number of Terminations | 2 |
| Operating Supply Voltage | 160V |
| Package Quantity | 100 |
| Packaging | Tray |
| Radiation Hardening | No |
| Resistance | 1.5kR |
| Resistor Type | Wirewound, Power resistor |
| RoHS Compliant | Yes |
| Series | HS, CGS |
| Technology | WIRE WOUND |
| Termination | Solder |
| Tolerance | 5% |
| Voltage Rating | 160V |
| DC Rated Voltage | 160V |
| Width | 17mm |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity HSA51K5J Datasheet
Download the complete datasheet for TE Connectivity HSA51K5J to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

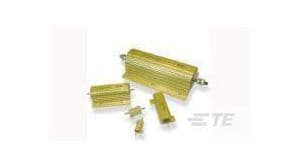

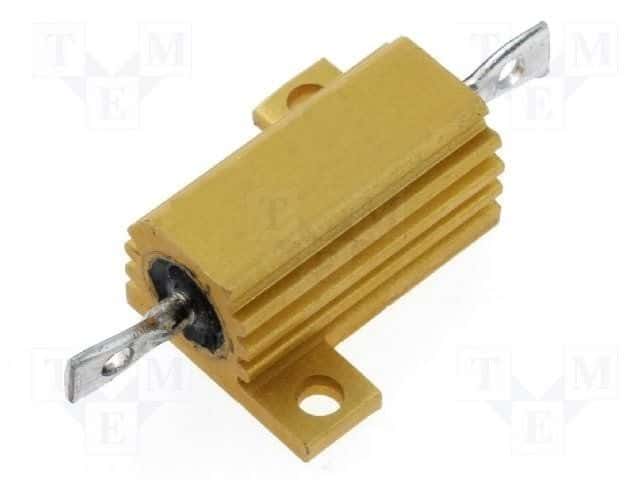

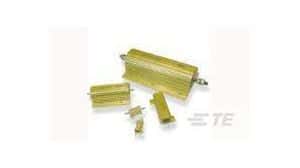

Product Images
