200W wirewound power resistor with 6.8 ohm resistance and 5% tolerance. Features chassis mount design with stud terminations, operating up to 200°C and rated for 1.9kV AC/DC. This RoHS compliant component offers a 50ppm temperature coefficient and a robust wirewound construction for demanding applications. Dimensions include 90mm length, 73mm width, and 42mm height.
Resistance6.8R
Voltage Rating1.9kV
MountingChassis Mount
Quick Jump:
Technical Specifications
TE Connectivity HSC2006R8J technical specifications.
General
| ELV | Compliant |
| Height | 42mm |
| Lead Free | Not Applicable |
| Lead/Base Style | Fixed |
| Length | 90mm |
| Max Operating Temperature | 200°C |
| Max Power Dissipation | 200W |
| Mount | Chassis Mount |
| Number of Resistors | 1 |
| Number of Terminations | 2 |
| Package Quantity | 2 |
| Packaging | Tray |
| Reach SVHC Compliant | No |
| Resistance | 6.8R |
| Resistance Tolerance | 5% |
| Resistor Type | Wirewound, Power resistor |
| RoHS Compliant | Yes |
| Series | HS, CGS |
| Technology | WIRE WOUND |
| Termination | Stud |
| Tolerance | 5% |
| Voltage Rating | 1.9kV |
| Voltage Rating (AC) | 1.9kV |
| DC Rated Voltage | 1.9kV |
| Width | 73mm |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity HSC2006R8J Datasheet
Download the complete datasheet for TE Connectivity HSC2006R8J to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

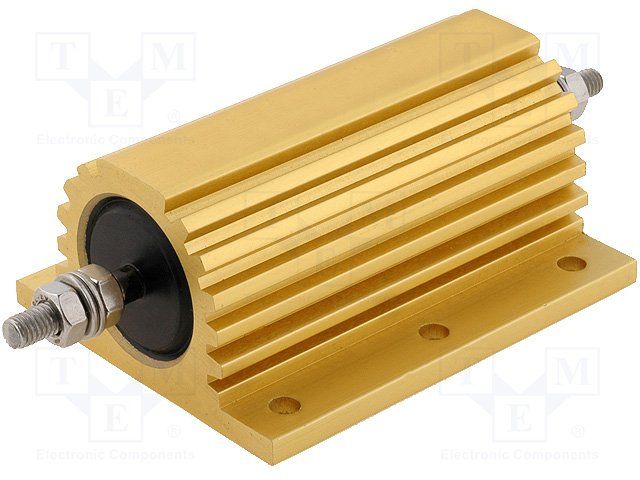

Product Images
