Chassis mount wirewound power resistor with 220 Ohm resistance and 5% tolerance. Features a 250W maximum power dissipation and a 2.2kV operating voltage rating. Designed for chassis mounting with stud terminations, this resistor operates within a temperature range of -55°C to 200°C. Dimensions are 109mm length, 73mm width, and 42mm height.
Resistance220R
Voltage Rating2.2kV
MountingChassis Mount
Quick Jump:
Technical Specifications
TE Connectivity HSC250220RJ technical specifications.
General
| Depth | 73mm |
| ELV | Compliant |
| Height | 42mm |
| Lead/Base Style | Fixed |
| Length | 109mm |
| Max Operating Temperature | 200°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 250W |
| Military Standard | Not |
| Mount | Chassis Mount |
| Number of Resistors | 1 |
| Number of Terminations | 2 |
| Operating Supply Voltage | 2.2kV |
| Package Quantity | 2 |
| Packaging | Tray |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Resistance | 220R |
| Resistance Tolerance | 5% |
| Resistor Type | Wirewound, Power resistor |
| RoHS Compliant | Yes |
| Series | HS, CGS |
| Technology | WIRE WOUND |
| Termination | Stud |
| Tolerance | 5% |
| Voltage Rating | 2.2kV |
| Voltage Rating (AC) | 2.2kV |
| DC Rated Voltage | 2.2kV |
| Width | 73mm |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity HSC250220RJ Datasheet
Download the complete datasheet for TE Connectivity HSC250220RJ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

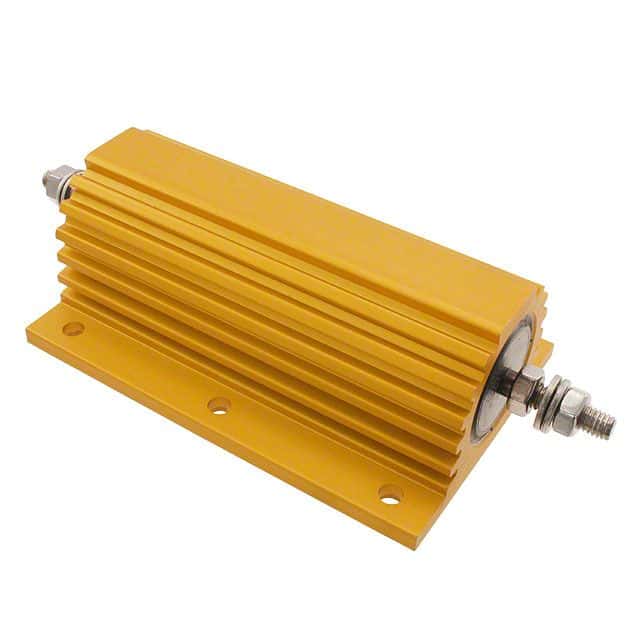

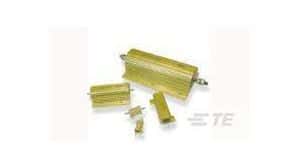

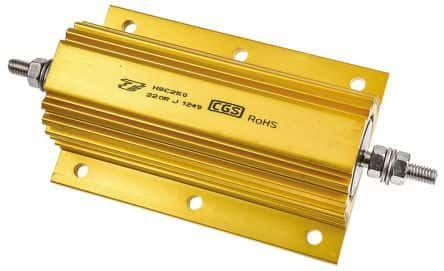

Product Images
