Chassis mount wirewound power resistor with 3.3 Ohm resistance and 5% tolerance. Features 250W maximum power dissipation and a 2.2kV voltage rating. Operates across a temperature range of -55°C to 200°C. Housed in aluminum with stud terminations for secure chassis mounting.
PackageAluminum
Resistance3.3R
Voltage Rating2.2kV
MountingChassis Mount
Quick Jump:
Technical Specifications
TE Connectivity HSC2503R3J technical specifications.
General
| Package/Case | Aluminum |
| ELV | Compliant |
| Height | 42mm |
| Lead/Base Style | Fixed |
| Length | 109mm |
| Max Operating Temperature | 200°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 250W |
| Mount | Chassis Mount |
| Number of Resistors | 1 |
| Number of Terminations | 2 |
| Package Quantity | 2 |
| Packaging | Tray |
| Reach SVHC Compliant | Unknown |
| Resistance | 3.3R |
| Resistance Tolerance | 5% |
| Resistor Type | Wirewound, Power resistor |
| RoHS Compliant | Yes |
| Series | HS, CGS |
| Technology | WIRE WOUND |
| Termination | Stud |
| Tolerance | 5% |
| Voltage Rating | 2.2kV |
| Voltage Rating (AC) | 2.2kV |
| DC Rated Voltage | 2.2kV |
| Width | 73mm |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity HSC2503R3J Datasheet
Download the complete datasheet for TE Connectivity HSC2503R3J to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

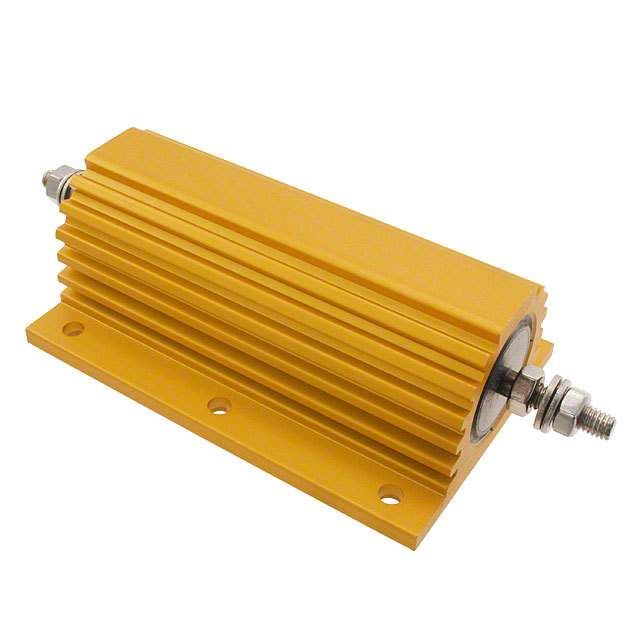

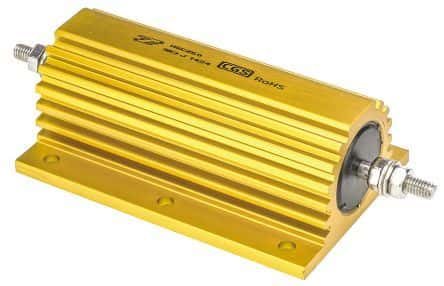

Product Images
