TE Connectivity
HSC25047RJ
Res Wirewound 47 Ohm 5% 250W ±50ppm/°C Aluminum Housed AXL Chassis Mount Box/Loose
Resistance47R
Voltage Rating2.2kV
MountingChassis Mount
Quick Jump:
Technical Specifications
TE Connectivity HSC25047RJ technical specifications.
General
ELV
Compliant
Height
42mm
Lead/Base Style
Fixed
Length
109mm
Max Operating Temperature
200°C
Min Operating Temperature
-55°C
Max Power Dissipation
250W
Mount
Chassis Mount
Package Quantity
2
Packaging
Tray
Reach SVHC Compliant
No
Resistance
47R
Resistance Tolerance
5%
Resistor Type
Wirewound, Power resistor
RoHS Compliant
Yes
Series
HS, CGS
Technology
WIRE WOUND
Termination
Stud
Tolerance
5%
Voltage Rating
2.2kV
Voltage Rating (AC)
2.2kV
DC Rated Voltage
2.2kV
Width
73mm
Compliance
RoHS
Compliant
Datasheet
TE Connectivity HSC25047RJ Datasheet
Download the complete datasheet for TE Connectivity HSC25047RJ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

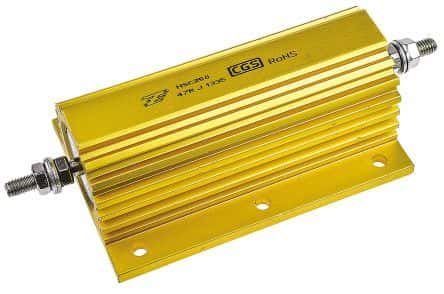

Product Images
