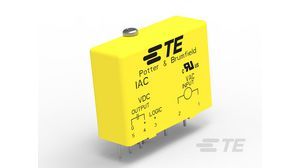

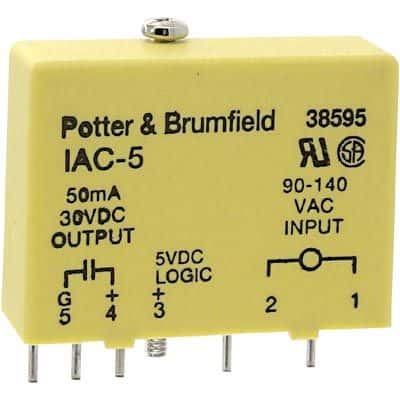

General I/O Relay Module with 120VAC nominal input, featuring a 50mA contact current rating and 10mA load current. This yellow module offers 1 Form A (SPST) contact configuration and a 30V max output voltage. Designed for through-hole PCB mounting, it operates within a -30°C to 80°C temperature range and boasts 4000Vrms isolation. Approvals include UL and CSA, with RoHS compliance.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the TE Connectivity IAC-5 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
TE Connectivity IAC-5 technical specifications.
| Approvals | UL, CSA |
| Package/Case | Module |
| Color | Yellow |
| Contact Current Rating | 50mA |
| Current Rating | 50mA |
| Depth | 15.2mm |
| ELV | Compliant |
| Height | 31.7mm |
| Input Current | 6mA |
| Input Type | DIGITAL |
| Lead Free | Lead Free |
| Length | 43.18mm |
| Load Current | 10mA |
| Manufacturer Series | IAC |
| Max Input Current | 6mA |
| Max Input Voltage (AC) | 140V |
| Min Input Voltage (AC) | 90V |
| Max Input Voltage (DC) | 140V |
| Min Input Voltage (DC) | 90V |
| Max Operating Temperature | 80°C |
| Min Operating Temperature | -30°C |
| Max Output Voltage | 30V |
| Mount | Through Hole, PCB |
| Nominal Input Voltage (AC) | 120V |
| Nominal Input Voltage (DC) | 120.12kV |
| Number of I/Os | 1 |
| Number of Outputs | 1 |
| Output Current | 18mA |
| Output Voltage | 30V |
| Package Quantity | 100 |
| Packaging | Box |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | IAC |
| Termination | PC Pins |
| Throw Configuration | SPST |
| Turn-Off Delay Time | 30ms |
| Turn-On Delay Time | 20ms |
| DC Rated Voltage | 140V |
| Weight | 35g |
| Width | 31.8mm |
| RoHS | Compliant |
