DPDT signal relay with 12VDC coil voltage and 140mW coil power. Features a 2A contact current rating with gold and ruthenium contact material, suitable for DC signal applications. Through-hole PCB mount design with dimensions of 10mm (length) x 6mm (width) x 5.8mm (height). Operates within a temperature range of -40°C to 85°C and offers IP67 environmental protection.
MountingPCB, Through Hole
Quick Jump:
Technical Specifications
TE Connectivity IM06TS technical specifications.
General
| Actuating System | DC |
| Application(s) | SIGNAL |
| Coil Current | 11.67mA |
| Coil Power | 140mW |
| Coil Resistance | 1.029kR |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 12V |
| Contact Current Rating | 2A |
| Contact Material | Gold, Ruthenium |
| Contact Plating | Gold |
| Contact Voltage Rating (DC) | 220V |
| Depth | 6mm |
| Height | 5.8mm |
| Insertion Loss | -0.03dB |
| Insertion Loss | 0.03dB |
| Length | 10inch |
| Max Current Rating | 2A |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 250V |
| Max Voltage Rating (DC) | 220V |
| Mount | PCB, Through Hole |
| Packaging | Rail/Tube |
| Ratings | IP67 |
| Reach SVHC Compliant | Unknown |
| Relay Type | Relay |
| RoHS Compliant | Yes |
| Switching Current | 2A |
| Termination | PCB |
| Throw Configuration | DPDT |
| Weight | 0.75oz |
| Width | 6mm |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity IM06TS Datasheet
Download the complete datasheet for TE Connectivity IM06TS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

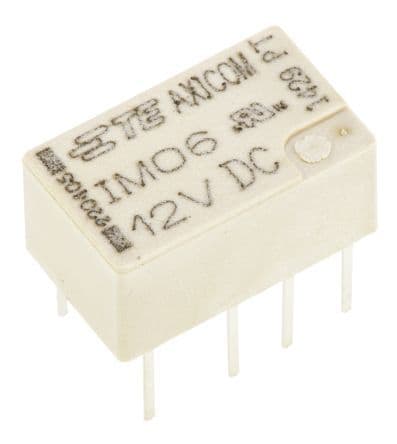

Product Images
