General purpose electromechanical relay featuring a 4PDT momentary contact configuration. Coil operates at 24VDC with a 900mW power consumption and 650 Ohm resistance. Contacts rated for 5A at 240VAC and 28VDC, with silver/cadmium contact material. Socket mount design with UL and CSA approvals, suitable for general purpose applications. Operating temperature range from -45°C to 70°C.
Package120
Current Rating5A
MountingSocket
Power900mW
Quick Jump:
Technical Specifications
TE Connectivity KHAU-17D12-24 technical specifications.
General
| Actuating System | DC |
| Application(s) | GENERAL PURPOSE |
| Approvals | UL, CSA |
| Package/Case | 120 |
| Coil Current | 36.92mA |
| Coil Power | 1W |
| Coil Resistance | 650R |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 24V |
| Contact Current Rating | 5A |
| Contact Material | Silver, Cadmium |
| Contact Voltage Rating (AC) | 240V |
| Current Rating | 5A |
| Depth | 21.8mm |
| ELV | Non-Compliant |
| Height | 32.5mm |
| Lead Free | Lead Free |
| Length | 28.2mm |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -45°C |
| Max Voltage Rating (AC) | 120V |
| Max Voltage Rating (DC) | 28V |
| Mount | Socket |
| Mounting Style | SOCKET |
| Operate Time | 13ms |
| Packaging | Tray |
| Power Consumption | 900mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Relay Type | General Purpose |
| Release Time | 6ms |
| RoHS Compliant | Yes |
| Series | KHA |
| Termination | Plug |
| Throw Configuration | 4PDT |
| Voltage Rating (AC) | 120V |
| Weight | 1.587oz |
| Width | 21.8mm |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity KHAU-17D12-24 Datasheet
Download the complete datasheet for TE Connectivity KHAU-17D12-24 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

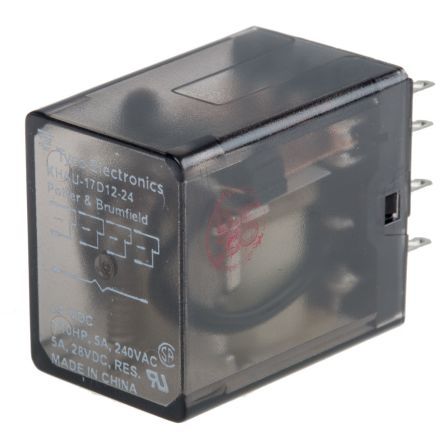

Product Images
