General purpose power relay featuring a 3PDT contact configuration and a 10A contact current rating at 240VAC. This socket-mount relay operates with a 120VAC coil, drawing 17.5mA and consuming 2.1W of power. Key specifications include a 15ms operate time and a maximum operating temperature of 55°C. Approvals include UL and CSA, with RoHS compliance.
Current Rating10A
MountingSocket
Power2W
Quick Jump:
Technical Specifications
TE Connectivity KRPA-14AG-120 technical specifications.
General
Actuating System
AC
Application(s)
GENERAL PURPOSE
Approvals
UL, CSA
Coil Current
17.5mA
Coil Power
2.1W
Coil Resistance
2.25kR
Coil Type
Non-Latching
Coil Voltage (AC)
120V
Contact Current Rating
10A
Contact Material
Silver, Cadmium
Contact Voltage Rating (AC)
240V
Current Rating
10A
Depth
35.71mm
ELV
Non-Compliant
Height
2inch
Lead Free
Not Applicable
Length
35.7mm
Max Operating Temperature
55°C
Min Operating Temperature
-45°C
Max Voltage Rating (AC)
240V
Mount
Socket
Mounting Style
SOCKET
Number of Contacts
3
Operate Time
15ms
Packaging
Tray
Power Consumption
2W
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Relay Type
General Purpose
RoHS Compliant
Yes
Series
KRPA
Termination
Plug
Throw Configuration
3PDT
Voltage Rating (AC)
240V
Weight
2.988oz
Width
1.405inch
Compliance
RoHS
Compliant
Datasheet
TE Connectivity KRPA-14AG-120 Datasheet
Download the complete datasheet for TE Connectivity KRPA-14AG-120 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

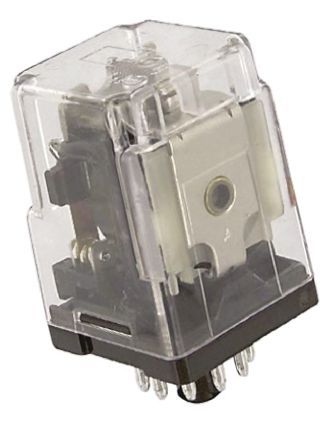

Product Images
