3PDT power relay with a 24VDC coil voltage and 10A contact current rating. Features silver, cadmium contact material and a 240VAC contact voltage rating. Operates within a -45°C to 70°C temperature range with a 15ms operate time. Socket mountable, this general-purpose relay is UL and CSA approved and RoHS compliant.
Current Rating10A
MountingSocket
Power1.2W
Quick Jump:
Technical Specifications
TE Connectivity KRPA-14DG-24 technical specifications.
General
| Actuating System | DC |
| Application(s) | GENERAL PURPOSE |
| Approvals | UL, CSA |
| Coil Current | 51mA |
| Coil Power | 1.5W |
| Coil Resistance | 472R |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 24V |
| Contact Current Rating | 10A |
| Contact Material | Silver, Cadmium |
| Contact Voltage Rating (AC) | 240V |
| Current Rating | 10A |
| Depth | 35.71mm |
| ELV | Non-Compliant |
| Height | 2inch |
| Lead Free | Not Applicable |
| Length | 35.7mm |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -45°C |
| Max Voltage Rating (AC) | 240V |
| Mount | Socket |
| Mounting Style | SOCKET |
| Operate Time | 15ms |
| Packaging | Tray |
| Power Consumption | 1.2W |
| Reach SVHC Compliant | Unknown |
| Relay Type | General Purpose |
| RoHS Compliant | Yes |
| Series | KRPA |
| Termination | Plug |
| Throw Configuration | 3PDT |
| Voltage Rating (AC) | 240V |
| Weight | 2.988oz |
| Width | 1.405inch |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity KRPA-14DG-24 Datasheet
Download the complete datasheet for TE Connectivity KRPA-14DG-24 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

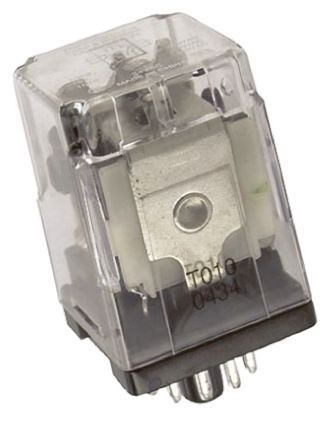

Product Images
