TE Connectivity
KUP-11A15-120
DPDT General Purpose Relay, 10A, 240VAC/28VDC, 120VAC Coil, Socket Mount
DPDT General Purpose Relay, 10A contact rating at 28VDC, 240VAC. Features a 120VAC coil with 2.1W power consumption and 2.25kΩ resistance. Operates with 15ms actuation and 10ms release times. Panel mount socket termination, RoHS compliant, and UL/CSA approved.
Current Rating10A
MountingSocket
Power2W
Quick Jump:
Technical Specifications
TE Connectivity KUP-11A15-120 technical specifications.
General
Actuating System
AC
Application(s)
GENERAL PURPOSE
Approvals
UL, CSA
Coil Current
17.5mA
Coil Power
2.1W
Coil Resistance
2.25kR
Coil Type
Non-Latching
Coil Voltage (AC)
120V
Contact Current Rating
10A
Contact Material
Silver, Cadmium
Contact Voltage Rating (AC)
240V
Current Rating
10A
Depth
35.71mm
ELV
Non-Compliant
Height
50mm
Lead Free
Lead Free
Length
38.9mm
Max Operating Temperature
55°C
Min Operating Temperature
-45°C
Max Voltage Rating (AC)
240V
Max Voltage Rating (DC)
32V
Mount
Socket
Mounting Style
SOCKET
Operate Time
15ms
Packaging
Bulk
Power Consumption
2W
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Relay Type
General Purpose
Release Time
10ms
RoHS Compliant
Yes
Series
KUP
Termination
Solder
Throw Configuration
DPDT
Voltage Rating (AC)
240V
DC Rated Voltage
28V
Weight
2.988oz
Width
1.405inch
Compliance
RoHS
Compliant
Datasheet
TE Connectivity KUP-11A15-120 Datasheet
Download the complete datasheet for TE Connectivity KUP-11A15-120 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

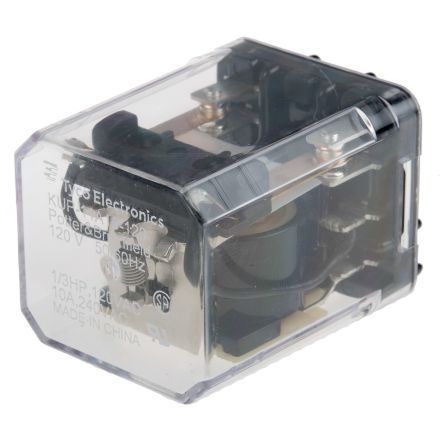

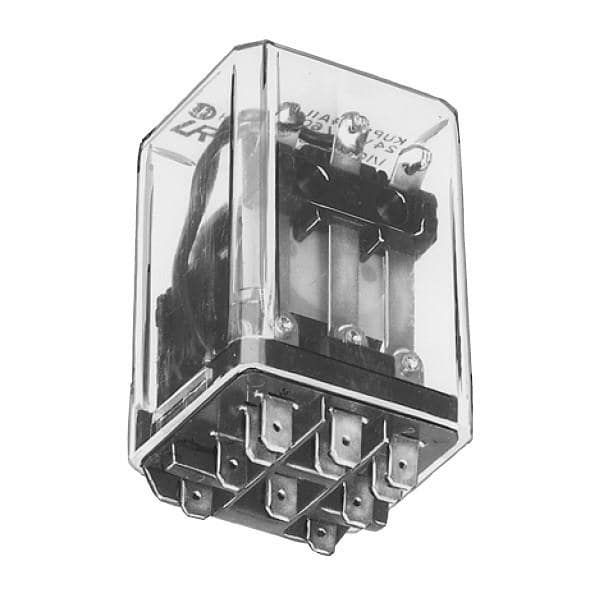

Product Images
