General purpose electromechanical relay featuring a 3PDT momentary contact configuration. Rated for 10A at 28VDC and 240VAC, with a coil voltage of 24VAC and 2.8W coil power. Panel mount design with solder termination and UL/CSA approvals. Operates within a temperature range of -45°C to 45°C.
Current Rating10A
MountingSocket
Power2W
Quick Jump:
Technical Specifications
TE Connectivity KUP-14A15-24 technical specifications.
General
Actuating System
AC
Application(s)
GENERAL PURPOSE
Approvals
UL, CSA
Coil Current
115mA
Coil Power
2.8W
Coil Resistance
72R
Coil Type
Non-Latching
Coil Voltage (AC)
24V
Contact Current Rating
10A
Contact Material
Silver, Cadmium
Contact Voltage Rating (AC)
240V
Current Rating
10A
Depth
35.7mm
ELV
Non-Compliant
Height
50mm
Lead Free
Not Applicable
Length
38.9mm
Max Operating Temperature
45°C
Min Operating Temperature
-45°C
Max Voltage Rating (AC)
240V
Max Voltage Rating (DC)
32V
Mount
Socket
Operate Time
15ms
Packaging
Bulk
Power Consumption
2W
Reach SVHC Compliant
Unknown
Relay Type
General Purpose
Release Time
10ms
RoHS Compliant
Yes
Series
KUP
Termination
Solder
Throw Configuration
3PDT
Voltage Rating (AC)
240V
Weight
2.988oz
Width
1.405inch
Compliance
RoHS
Compliant
Datasheet
TE Connectivity KUP-14A15-24 Datasheet
Download the complete datasheet for TE Connectivity KUP-14A15-24 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

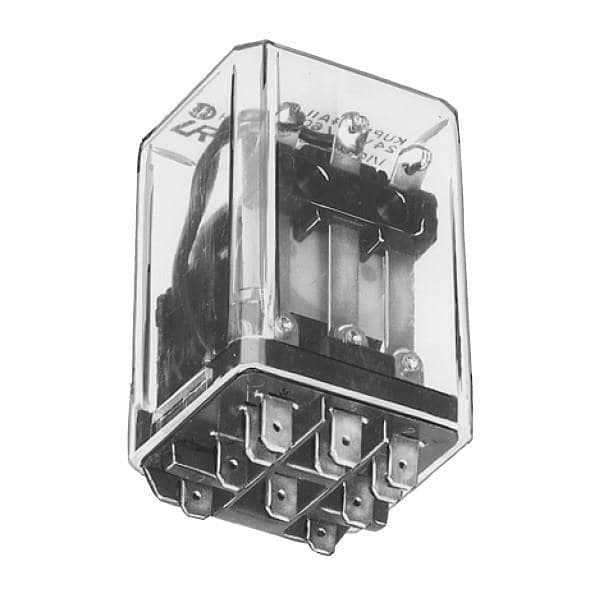

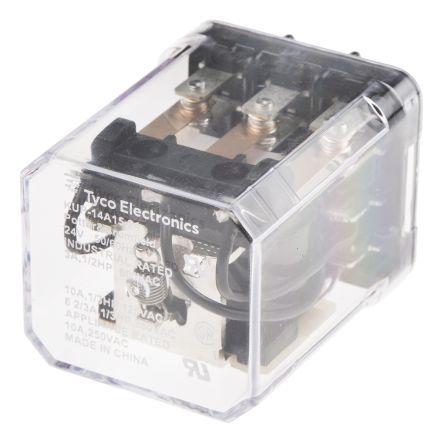

Product Images
