General purpose electromechanical relay featuring a 3PDT momentary contact configuration. Coil operates at 24VDC with 1.2W power consumption and 51mA current. Contacts rated for 5A at 28VDC and 10A at 240VAC, with silver contact material. Panel mountable via socket termination. UL and CSA approved, RoHS compliant.
Current Rating5A
MountingSocket
Power1.2W
Quick Jump:
Technical Specifications
TE Connectivity KUP-14D11-24 technical specifications.
General
| Actuating System | DC |
| Application(s) | GENERAL PURPOSE |
| Approvals | UL, CSA |
| Coil Current | 51mA |
| Coil Power | 1.5W |
| Coil Resistance | 472R |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 24V |
| Contact Current Rating | 10A |
| Contact Material | Silver |
| Contact Voltage Rating (AC) | 240V |
| Current Rating | 5A |
| Depth | 35.71mm |
| ELV | Non-Compliant |
| Height | 50mm |
| Lead Free | Not Applicable |
| Length | 38.9mm |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -45°C |
| Max Voltage Rating (AC) | 240V |
| Max Voltage Rating (DC) | 28V |
| Mount | Socket |
| Mounting Style | SOCKET |
| Operate Time | 15ms |
| Package Quantity | 25 |
| Packaging | Bulk |
| Power Consumption | 1.2W |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Relay Type | General Purpose |
| Release Time | 10ms |
| RoHS Compliant | Yes |
| Series | KUP |
| Termination | Solder |
| Throw Configuration | 3PDT |
| Voltage Rating (AC) | 240V |
| Weight | 2.988oz |
| Width | 1.405inch |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity KUP-14D11-24 Datasheet
Download the complete datasheet for TE Connectivity KUP-14D11-24 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

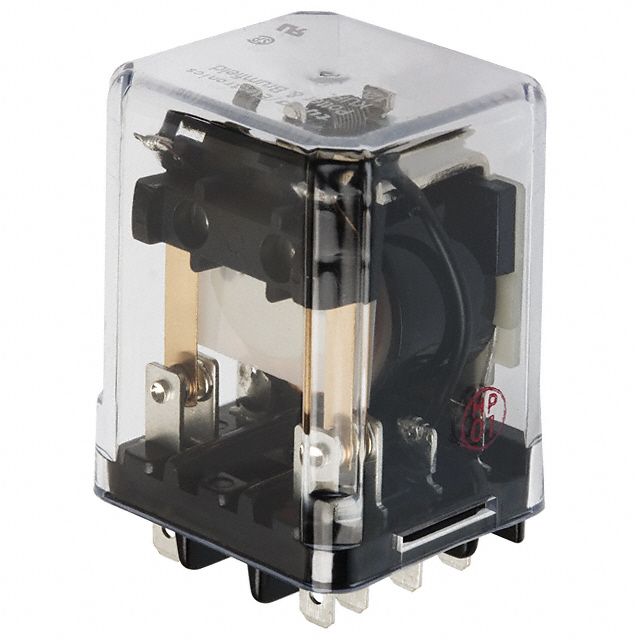

Product Images
