General purpose power relay featuring a 12VDC coil with 1.5W power consumption and 100mA coil current. This 3PDT relay offers a 10A contact current rating and 240VAC contact voltage rating. Designed for socket mounting, it operates within a temperature range of -45°C to 70°C and includes UL and CSA approvals. Dimensions are 38.9mm length, 35.71mm depth, and 50mm height.
Current Rating10A
MountingSocket
Power1.2W
Quick Jump:
Technical Specifications
TE Connectivity KUP-14D15-12 technical specifications.
General
Actuating System
DC
Application(s)
GENERAL PURPOSE
Approvals
UL, CSA
Coil Current
100mA
Coil Power
1.5W
Coil Resistance
120R
Coil Type
Non-Latching
Coil Voltage (DC)
12V
Contact Current Rating
10A
Contact Material
Silver, Cadmium
Contact Voltage Rating (AC)
240V
Current Rating
10A
Depth
35.71mm
ELV
Non-Compliant
Height
50mm
Lead Free
Not Applicable
Length
38.9mm
Max Operating Temperature
70°C
Min Operating Temperature
-45°C
Max Voltage Rating (AC)
240V
Max Voltage Rating (DC)
32V
Mount
Socket
Mounting Style
SOCKET
Operate Time
15ms
Packaging
Tray
Power Consumption
1.2W
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Relay Type
General Purpose
Release Time
10ms
RoHS Compliant
Yes
Series
KUP
Termination
Solder
Throw Configuration
3PDT
Voltage Rating (AC)
240V
DC Rated Voltage
28V
Weight
2.988oz
Width
1.405inch
Compliance
RoHS
Compliant
Datasheet
TE Connectivity KUP-14D15-12 Datasheet
Download the complete datasheet for TE Connectivity KUP-14D15-12 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

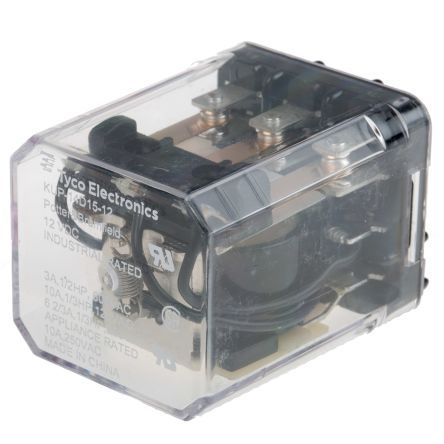

Product Images
