General purpose relay featuring a 3PDT (Triple Pole Double Throw) contact configuration and momentary operation. Coil specifications include 48VDC actuation, 1.2W power consumption, and 1.8kR coil resistance. Contact ratings are 10A at 28VDC and 240VAC, with silver/cadmium contact material. Mounting is via socket, suitable for panel applications, and the unit is RoHS compliant with UL and CSA approvals.
Current Rating10A
MountingSocket
Power1.2W
Quick Jump:
Technical Specifications
TE Connectivity KUP-14D15-48 technical specifications.
General
| Actuating System | DC |
| Application(s) | GENERAL PURPOSE |
| Approvals | UL, CSA |
| Coil Current | 26.7mA |
| Coil Power | 1.5W |
| Coil Resistance | 1.8kR |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 48V |
| Contact Current Rating | 10A |
| Contact Material | Silver, Cadmium |
| Contact Voltage Rating (AC) | 240V |
| Current Rating | 10A |
| Depth | 35.71mm |
| ELV | Non-Compliant |
| Height | 50mm |
| Lead Free | Lead Free |
| Length | 38.9mm |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -45°C |
| Max Voltage Rating (AC) | 240V |
| Max Voltage Rating (DC) | 32V |
| Mount | Socket |
| Mounting Style | SOCKET |
| Operate Time | 15ms |
| Packaging | Bulk |
| Power Consumption | 1.2W |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Relay Type | General Purpose |
| Release Time | 10ms |
| RoHS Compliant | Yes |
| Series | KUP |
| Termination | Solder |
| Throw Configuration | 3PDT |
| Voltage Rating (AC) | 240V |
| DC Rated Voltage | 28V |
| Weight | 2.988oz |
| Width | 1.405inch |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity KUP-14D15-48 Datasheet
Download the complete datasheet for TE Connectivity KUP-14D15-48 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

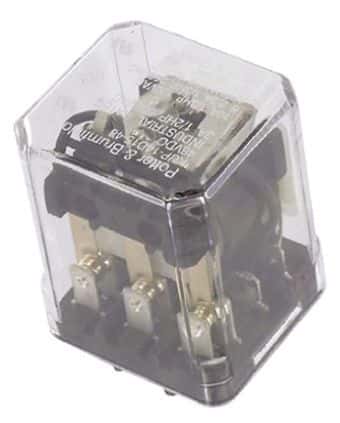

Product Images
