General purpose electromechanical relay featuring a 3PDT momentary contact configuration. Rated for 10A contact current at 28VDC and 240VAC. Operates on a 6VDC coil voltage with 1.2W power consumption. Panel mount design with solder termination. UL and CSA approved, RoHS compliant.
Current Rating10A
MountingSocket
Power1.2W
Quick Jump:
Technical Specifications
TE Connectivity KUP-14D15-6 technical specifications.
General
| Actuating System | DC |
| Application(s) | GENERAL PURPOSE |
| Approvals | UL, CSA |
| Coil Current | 187mA |
| Coil Power | 1.5W |
| Coil Resistance | 32R |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 6V |
| Contact Current Rating | 10A |
| Contact Material | Silver, Cadmium |
| Contact Voltage Rating (AC) | 240V |
| Current Rating | 10A |
| Depth | 35.7mm |
| ELV | Non-Compliant |
| Height | 50mm |
| Lead Free | Not Applicable |
| Length | 38.9mm |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -45°C |
| Max Voltage Rating (AC) | 240V |
| Max Voltage Rating (DC) | 32V |
| Mount | Socket |
| Operate Time | 15ms |
| Packaging | Bulk |
| Power Consumption | 1.2W |
| Reach SVHC Compliant | Unknown |
| Relay Type | General Purpose |
| Release Time | 10ms |
| RoHS Compliant | Yes |
| Series | KUP |
| Termination | Solder |
| Throw Configuration | 3PDT |
| Voltage Rating (AC) | 240V |
| Weight | 2.988oz |
| Width | 1.405inch |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity KUP-14D15-6 Datasheet
Download the complete datasheet for TE Connectivity KUP-14D15-6 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

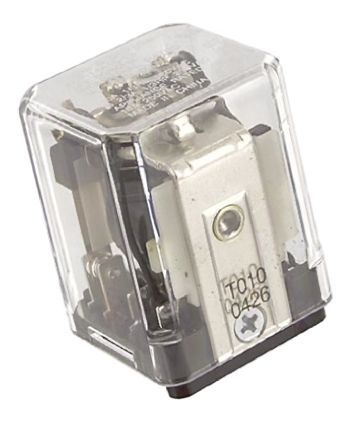

Product Images
