General purpose electromechanical relay featuring a 3PDT momentary contact configuration. Coil operates at 24VDC with 1.2W power consumption and 51mA current. Contacts rated for 10A at 28VDC and 240VAC, with silver/cadmium contact material. Panel mount design with solder termination, operating temperature range of -45°C to 70°C. UL and CSA approved, RoHS compliant.
Current Rating10A
MountingSocket
Power1.2W
Quick Jump:
Technical Specifications
TE Connectivity KUP-14D35-24 technical specifications.
General
Actuating System
DC
Application(s)
GENERAL PURPOSE
Approvals
UL, CSA
Coil Current
51mA
Coil Power
1.5W
Coil Resistance
472R
Coil Type
Non-Latching
Coil Voltage (DC)
24V
Contact Current Rating
10A
Contact Material
Silver, Cadmium
Contact Voltage Rating (AC)
240V
Current Rating
10A
Depth
35.7mm
ELV
Non-Compliant
Height
50mm
Lead Free
Not Applicable
Length
38.9mm
Max Operating Temperature
70°C
Min Operating Temperature
-45°C
Max Voltage Rating (AC)
240V
Max Voltage Rating (DC)
32V
Mount
Socket
Operate Time
15ms
Packaging
Bulk
Power Consumption
1.2W
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Relay Type
General Purpose
Release Time
10ms
RoHS Compliant
Yes
Series
KUP
Termination
Solder
Throw Configuration
3PDT
Voltage Rating (AC)
240V
Weight
2.988oz
Width
1.405inch
Compliance
RoHS
Compliant
Datasheet
TE Connectivity KUP-14D35-24 Datasheet
Download the complete datasheet for TE Connectivity KUP-14D35-24 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

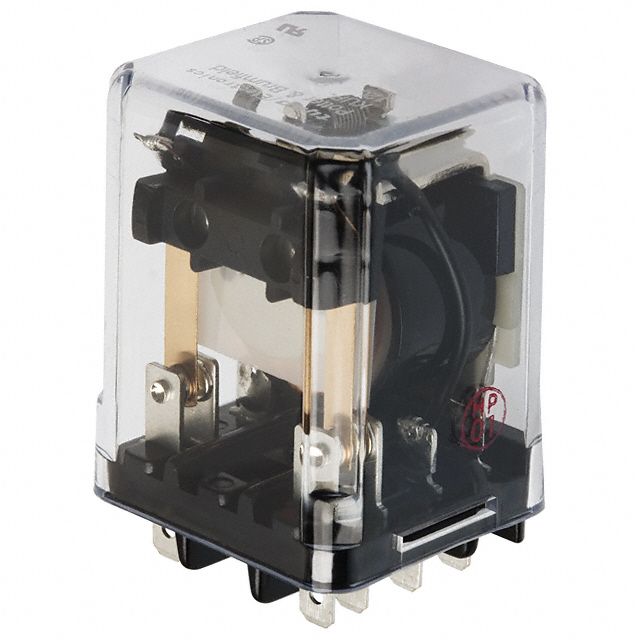

Product Images
