General purpose electromechanical relay featuring a 3PDT momentary contact configuration. Coil operates at 24VDC with a 51mA current draw and 1.5W power consumption. Contacts are rated for 10A at 28VDC and 240VAC, with silver/cadmium contact material. Panel mount design with solder termination, UL and CSA approvals, and RoHS compliance.
Current Rating10A
MountingPanel
Power2W
Quick Jump:
Technical Specifications
TE Connectivity KUP-14D55-24 technical specifications.
General
Actuating System
DC
Approvals
UL, CSA
Coil Current
51mA
Coil Power
1.5W
Coil Resistance
472R
Coil Type
Non-Latching
Coil Voltage (DC)
24V
Contact Current Rating
10A
Contact Material
Silver, Cadmium
Contact Voltage Rating (AC)
240V
Current Rating
10A
Depth
38.89mm
ELV
Non-Compliant
Height
35.7mm
Lead Free
Not Applicable
Length
1.906inch
Max Operating Temperature
70°C
Min Operating Temperature
-45°C
Max Voltage Rating (AC)
240V
Max Voltage Rating (DC)
32V
Mount
Panel
Operate Time
15ms
Packaging
Bulk
Power Consumption
2W
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Relay Type
General Purpose
Release Time
10ms
RoHS Compliant
Yes
Series
KUP
Termination
Solder
Throw Configuration
3PDT
Voltage Rating (AC)
240V
DC Rated Voltage
28V
Weight
2.988oz
Width
1.531inch
Compliance
RoHS
Compliant
Datasheet
TE Connectivity KUP-14D55-24 Datasheet
Download the complete datasheet for TE Connectivity KUP-14D55-24 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

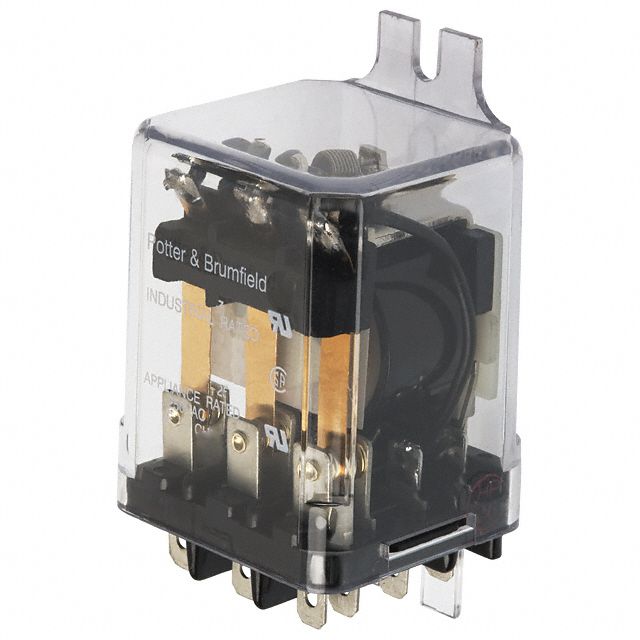

Product Images
