Surface mount RF transformer with a 1:2 turns ratio, operating from 2MHz to 800MHz. Features 50 Ohm primary impedance and a maximum DC current of 240mA. Encased in an SMD/SMT package with dimensions of 3.81mm (length) x 3.81mm (width) x 2.67mm (height), and a depth of 3.81mm. Offers a maximum operating temperature of 85°C and a minimum of -40°C, with 3dB insertion loss. This RoHS compliant component is supplied on tape and reel.
PackageSMD/SMT
MountingSurface Mount
Quick Jump:
Technical Specifications
TE Connectivity MABAES0061 technical specifications.
General
| Package/Case | SMD/SMT |
| Depth | 3.81mm |
| Height | 2.67mm |
| Insertion Loss | 3dB |
| Lead Free | Lead Free |
| Length | 3.81mm |
| Max DC Current | 240mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Primary Impedance | 50R |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Termination | SMD/SMT |
| Turns Ratio | 1:2 |
| Width | 3.81mm |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity MABAES0061 Datasheet
Download the complete datasheet for TE Connectivity MABAES0061 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

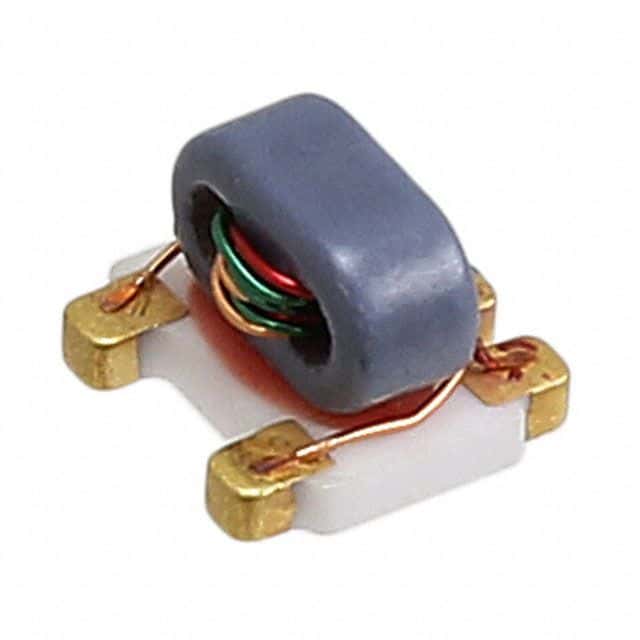

Product Images
