Illuminated pushbutton switch featuring a momentary ON-Mom function and SPDT throw configuration. Rated for 6A at 250VAC and 28VDC, with copper and silver contacts plated in gold and silver. Offers a panel mount design with wire lug termination and a straight orientation. Operates within a temperature range of -20°C to 80°C, boasting an electrical life of 50,000 cycles.
Current Rating6A
MountingPanel
Quick Jump:
Technical Specifications
TE Connectivity MPA106F technical specifications.
General
| Actuator Length | 0.55inch |
| Contact Current Rating | 6A |
| Contact Material | Copper, Silver |
| Contact Plating | Gold, Silver |
| Current Rating | 6A |
| Depth | 8.89mm |
| Electrical Life | 50000Cycles |
| ELV | Compliant |
| Illumination Type | Illuminated |
| Lead Free | Lead Free |
| Max Current Rating | 6A |
| Max Operating Temperature | 80°C |
| Min Operating Temperature | -20°C |
| Max Voltage Rating (AC) | 250V |
| Max Voltage Rating (DC) | 28V |
| Mount | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Orientation | Straight |
| Package Quantity | 25 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | MPA |
| Switch Function | On-Mom |
| Termination | Lug |
| Throw Configuration | SPDT |
| Type | Switch |
| Voltage Rating (AC) | 250V |
| DC Rated Voltage | 28V |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity MPA106F Datasheet
Download the complete datasheet for TE Connectivity MPA106F to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

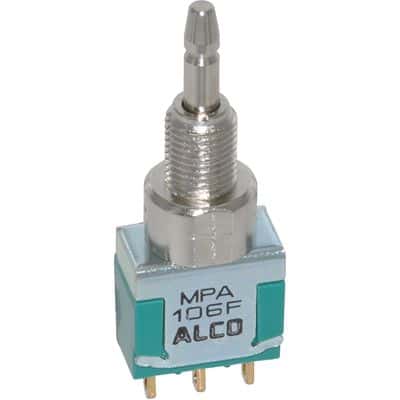

Product Images
