Technical Specifications
TE Connectivity NANOSMDM075-02 technical specifications.
General
| Package/Case | 1206 |
| Hold Current | 750mA |
| Max Current Rating | 40A |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Operating Supply Voltage | 6V |
| Packaging | Tape and Reel |
| Resistance | 290mR |
| Series | nanoASMDM |
| Termination | SMD/SMT |
| Trip Current | 1.5A |
| DC Rated Voltage | 6V |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity NANOSMDM075-02 Datasheet
Download the complete datasheet for TE Connectivity NANOSMDM075-02 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

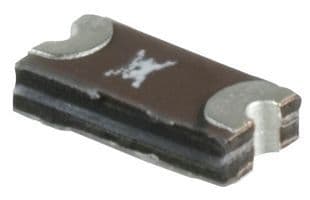

Product Images
