Single-channel, SPST I/O relay module with 3A contact current rating and 280V AC/DC output voltage. Features a 5V DC nominal input voltage, 3V to 8V DC input voltage range, and 6A input current. Operates across a -30°C to 80°C temperature range. Module mounts via through-hole or PCB with PC pin termination. UL and CSA approved, RoHS compliant.
PackageModule
Voltage Rating280V
Current Rating3A
MountingThrough Hole, PCB
Quick Jump:
Technical Specifications
TE Connectivity OAC-5 technical specifications.
General
Approvals
UL, CSA
Package/Case
Module
Color
Black
Contact Current Rating
3A
Current Rating
3A
Depth
15.2mm
ELV
Compliant
Height
31.8mm
Input Current
6A
Input Type
DC
Lead Free
Lead Free
Length
43.18mm
Load Current
3A
Max Input Voltage (DC)
8V
Min Input Voltage (DC)
3V
Max Operating Temperature
80°C
Min Operating Temperature
-30°C
Max Output Voltage
280V
Mount
Through Hole, PCB
Nominal Input Voltage (DC)
5V
Number of Analog Inputs
1
Number of Analog Outputs
1
Number of Channels
1
Output Current
3A
Output Type
Digital
Package Quantity
100
Package Style
MODULE
Primary Type
MODULE
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
OAC
Termination
PC Pins
Throw Configuration
SPST
Turn-Off Delay Time
8.33ms
Turn-On Delay Time
8.33ms
Voltage Rating
280V
Weight
35g
Width
31.8mm
Compliance
RoHS
Compliant
Datasheet
TE Connectivity OAC-5 Datasheet
Download the complete datasheet for TE Connectivity OAC-5 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

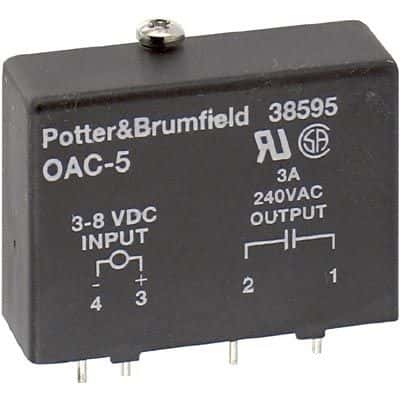

Product Images
