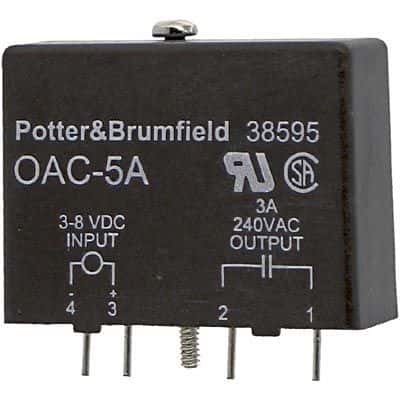

Single-channel, SPST I/O relay module with a 3A contact current rating and 3A current rating. Features a 5V DC nominal input voltage, 3V to 8V DC input voltage range, and 20mA input current. Offers a 240V AC/DC output voltage with a 3A output current capacity. Designed for PCB mounting via through-hole termination, this module operates within a -30°C to 80°C temperature range and boasts 4000V rms input/output isolation. Compliant with RoHS and ELV standards.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the TE Connectivity OAC-5A datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
TE Connectivity OAC-5A technical specifications.
| Approvals | UL, CSA |
| Package/Case | Module |
| Color | Black |
| Contact Current Rating | 3A |
| Current Rating | 3A |
| Depth | 15.2mm |
| ELV | Compliant |
| Height | 31.8mm |
| Input Current | 20mA |
| Input Type | DC |
| Lead Free | Lead Free |
| Length | 43.18mm |
| Load Current | 4.5mA |
| Max Input Current | 20mA |
| Max Input Voltage (DC) | 8V |
| Min Input Voltage (DC) | 3V |
| Max Operating Temperature | 80°C |
| Min Operating Temperature | -30°C |
| Max Output Voltage | 280V |
| Mount | Through Hole, PCB |
| Nominal Input Voltage (DC) | 5V |
| Number of Channels | 1 |
| Number of Outputs | 1 |
| Operating Supply Voltage | 5V |
| Output Current | 3A |
| Output Type | Digital |
| Output Voltage | 240V |
| Package Quantity | 100 |
| Package Style | MODULE |
| Packaging | Tray |
| Primary Type | MODULE |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | OAC |
| Termination | PC Pins |
| Throw Configuration | SPST |
| Turn-Off Delay Time | 8.33ms |
| Turn-On Delay Time | 8.33ms |
| DC Rated Voltage | 5V |
| Weight | 35g |
| Width | 31.8mm |
| RoHS | Compliant |
