SPDT power relay with a 6VDC coil voltage, 60mA coil current, and 400mW coil power. Features a 10A contact current rating and 250VAC contact voltage rating, with silver contacts. Through-hole PCB mount termination and a general-purpose relay type. Operates within a -40°C to 85°C temperature range, with a 10ms operate time and 20ms release time.
MountingThrough Hole, PCB
Quick Jump:
Technical Specifications
TE Connectivity PB114006 technical specifications.
General
| Application(s) | POWER |
| Coil Current | 60mA |
| Coil Power | 400mW |
| Coil Resistance | 100R |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 6V |
| Contact Current Rating | 10A |
| Contact Material | Silver |
| Contact Voltage Rating (AC) | 250V |
| Depth | 15mm |
| Dropout Voltage | 600mV |
| ELV | Compliant |
| Height | 0.787inch |
| Length | 15mm |
| Life (Hours) | 30000Hour |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole, PCB |
| Operate Time | 10ms |
| Package Quantity | 1050 |
| Packaging | Rail/Tube |
| Reach SVHC Compliant | Unknown |
| Relay Type | General Purpose |
| Release Time | 20ms |
| RoHS Compliant | Yes |
| Series | PB, SCHRACK |
| Termination | PCB |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 400V |
| Weight | 5.4g |
| Width | 15mm |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity PB114006 Datasheet
Download the complete datasheet for TE Connectivity PB114006 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

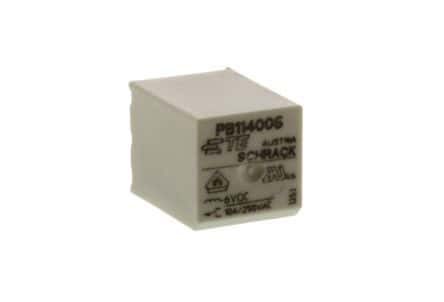

Product Images
