General purpose electromechanical relay featuring a 5A contact current rating and SPST throw configuration. Coil specifications include 5V DC, 150mW power, and 208 Ohm resistance, with a non-latching type. Contacts are silver with gold plating, rated for 30V DC. This relay offers a 3A switching current, PCB termination, and operates within a -30°C to 70°C temperature range. Dimensions are 20mm length, 5mm width, and 12.5mm height, with a weight of 3g.
Current Rating5A
Quick Jump:
Technical Specifications
TE Connectivity PCN-105D3MHZ,001B technical specifications.
General
| Coil Power | 150mW |
| Coil Resistance | 208R |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 5V |
| Contact Current Rating | 5A |
| Contact Material | Silver |
| Contact Plating | Gold |
| Contact Voltage Rating (DC) | 30V |
| Current Rating | 5A |
| ELV | Compliant |
| Height | 12.5mm |
| Length | 20mm |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -30°C |
| Number of Contacts | 1 |
| Packaging | Tray |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Switching Current | 3A |
| Termination | PCB |
| Throw Configuration | SPST |
| Weight | 3g |
| Width | 5mm |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity PCN-105D3MHZ,001B Datasheet
Download the complete datasheet for TE Connectivity PCN-105D3MHZ,001B to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

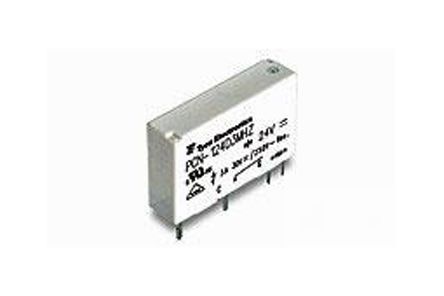

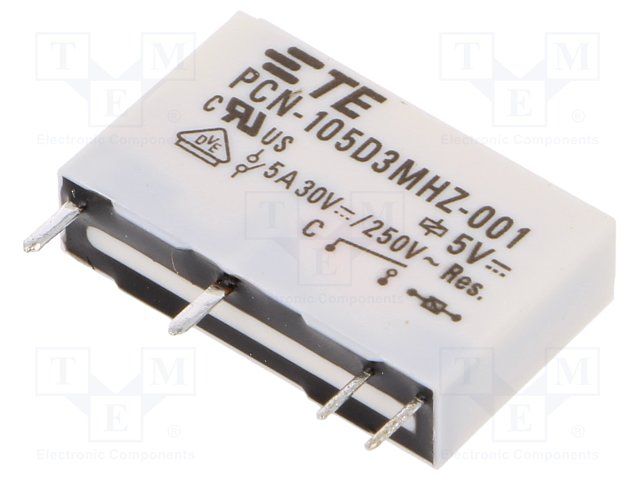

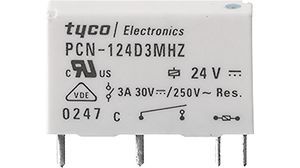

Product Images
