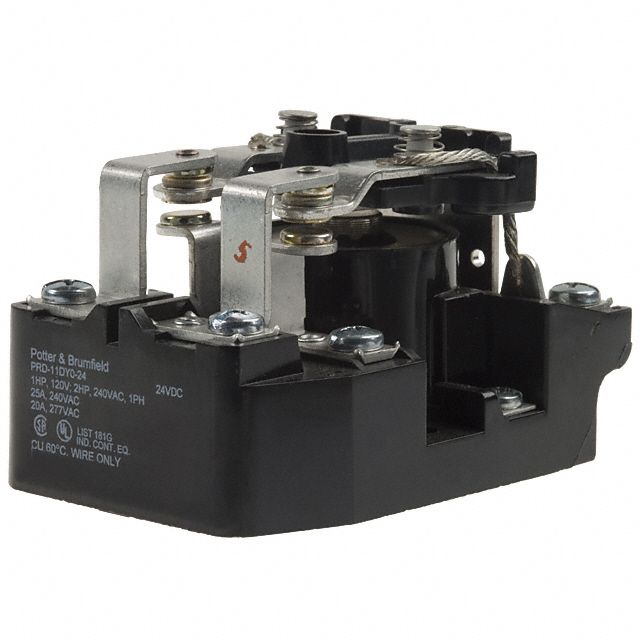

DPDT General Purpose Electromechanical Relay, designed for power applications. Features a 25A contact current rating with silver contacts and a 240V AC maximum voltage rating. Operates on a 24VDC coil voltage with 84mA coil current and 2000mW coil power. Panel mountable with screw termination, offering a 40ms operate time and 20ms release time. Compliant with RoHS and ELV directives, and UL/CSA approved.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the TE Connectivity PRD-11DY0-24 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
TE Connectivity PRD-11DY0-24 technical specifications.
| Application(s) | POWER |
| Approvals | UL, CSA |
| Coil Current | 84mA |
| Coil Power | 9.8W |
| Coil Resistance | 288R |
| Coil Type | Non-Latching |
| Coil Voltage (AC) | 24V |
| Coil Voltage (DC) | 24V |
| Contact Current Rating | 25A |
| Contact Material | Silver |
| Current Rating | 25A |
| Depth | 63.8mm |
| ELV | Compliant |
| Height | 63.5mm |
| Input Current | 25A |
| Lead Free | Lead Free |
| Length | 85.73mm |
| Max Current Rating | 25A |
| Max Operating Temperature | 80°C |
| Min Operating Temperature | -55°C |
| Max Voltage Rating (AC) | 240V |
| Mount | Chassis Mount, Panel, Chassis |
| Operate Time | 40ms |
| Packaging | Bulk |
| Power Consumption | 2W |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Relay Type | General Purpose |
| Release Time | 20ms |
| RoHS Compliant | Yes |
| Series | PRD |
| Termination | Screw |
| Throw Configuration | DPDT |
| Voltage Rating (AC) | 240V |
| DC Rated Voltage | 24V |
| RoHS | Compliant |
