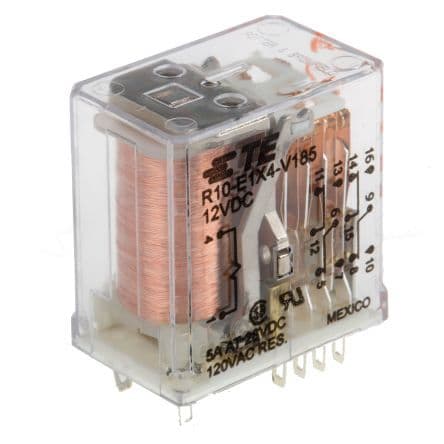

General purpose electromechanical relay featuring a 4PDT momentary contact configuration. Coil operates at 12VDC with 1W power consumption and 185 Ohm resistance. Contacts rated for 5A at 120VAC and 30VDC, with silver/cadmium contact material. Socket mount design, RoHS compliant, with UL and CSA approvals.
Current Rating5A
MountingSocket
Quick Jump:
Technical Specifications
TE Connectivity R10-E1X4-V185 technical specifications.
General
Actuating System
DC
Application(s)
GENERAL PURPOSE
Approvals
UL, CSA
Coil Current
64.86mA
Coil Power
1W
Coil Resistance
185R
Coil Type
Non-Latching
Coil Voltage (DC)
12V
Contact Current Rating
5A
Contact Material
Silver, Cadmium
Contact Voltage Rating (AC)
120V
Current Rating
5A
Depth
18.67mm
ELV
Non-Compliant
Height
1.189inch
Lead Free
Not Applicable
Length
29.6mm
Max Operating Temperature
75°C
Min Operating Temperature
-55°C
Max Voltage Rating (AC)
120V
Max Voltage Rating (DC)
30V
Mount
Socket
Mounting Style
SOCKET
Operate Time
30ms
Packaging
Bulk
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Relay Type
General Purpose
RoHS Compliant
Yes
Series
R10
Termination
Plug
Throw Configuration
4PDT
Voltage Rating (AC)
120V
Weight
1.41oz
Width
0.736inch
Compliance
RoHS
Compliant
Datasheet
TE Connectivity R10-E1X4-V185 Datasheet
Download the complete datasheet for TE Connectivity R10-E1X4-V185 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
