General purpose power relay with a 24VDC coil voltage and 34.28mA coil current, consuming 1W of power. Features a 5A contact current rating and 120VAC contact voltage rating, with a 4PDT throw configuration. Operating temperature range from -55°C to 75°C. Socket mountable with plug termination, meeting UL and CSA approvals.
Current Rating5A
MountingSocket
Quick Jump:
Technical Specifications
TE Connectivity R10-E1X4-V700 technical specifications.
General
| Actuating System | DC |
| Application(s) | GENERAL PURPOSE |
| Approvals | UL, CSA |
| Coil Current | 34.28mA |
| Coil Power | 1W |
| Coil Resistance | 700R |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 24V |
| Contact Current Rating | 5A |
| Contact Material | Silver, Cadmium |
| Contact Voltage Rating (AC) | 120V |
| Current Rating | 5A |
| Depth | 18.67mm |
| ELV | Non-Compliant |
| Height | 1.189inch |
| Lead Free | Lead Free |
| Length | 29.6mm |
| Max Operating Temperature | 75°C |
| Min Operating Temperature | -55°C |
| Max Voltage Rating (AC) | 120V |
| Max Voltage Rating (DC) | 30V |
| Mount | Socket |
| Mounting Style | SOCKET |
| Operate Time | 30ms |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Relay Type | General Purpose |
| RoHS Compliant | Yes |
| Series | R10 |
| Termination | Plug |
| Throw Configuration | 4PDT |
| Voltage Rating (AC) | 120V |
| Weight | 1.41oz |
| Width | 0.736inch |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity R10-E1X4-V700 Datasheet
Download the complete datasheet for TE Connectivity R10-E1X4-V700 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

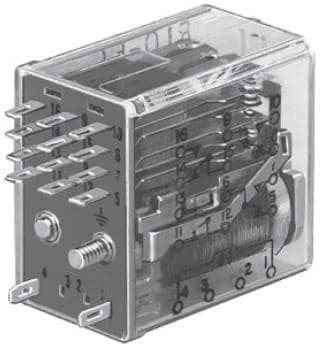

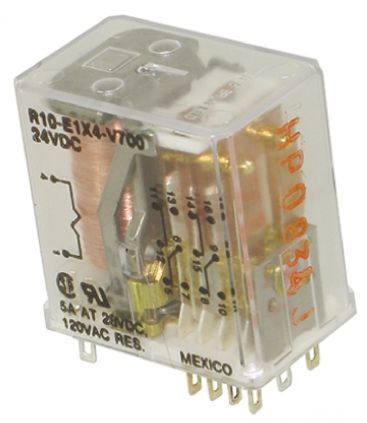

Product Images
