Radial leaded, through-hole mounted polymer resettable fuse with a 4A hold current and 6.8A trip current. Features a 16V DC rated voltage, 100A maximum current rating, and operates within a -40°C to 85°C temperature range. Constructed with polymer and epoxy body materials, it offers 2.4W power dissipation and is RoHS compliant. Approvals include UL, CSA, and TUV.
PackageRadial
Storage12.8mm
Voltage Rating16V
Current Rating4A
Quick Jump:
Technical Specifications
TE Connectivity RGEF400 technical specifications.
General
| Approvals | UL, CSA, TUV |
| Body Height | 12.8mm |
| Body Length | 8.9mm |
| Body Material | Polymer, Epoxy |
| Package/Case | Radial |
| Current Rating | 4A |
| ELV | Compliant |
| Height | 12.8mm |
| Hold Current | 4A |
| Lead Free | Lead Free |
| Lead/Base Style | Straight |
| Max Current Rating | 100A |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Package Quantity | 500 |
| Packaging | Bulk |
| Power Dissipation | 2.4W |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | PolySwitch |
| Size | 12.8mm |
| Termination | Radial |
| Thickness | 3mm |
| Time to Trip | 1.7s |
| Trip Current | 6.8A |
| Voltage Rating | 16V |
| DC Rated Voltage | 16V |
| Width | 8.9mm |
| Wire/Cable Diameter | 0.81mm |
| Working Voltage | 16V |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity RGEF400 Datasheet
Download the complete datasheet for TE Connectivity RGEF400 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

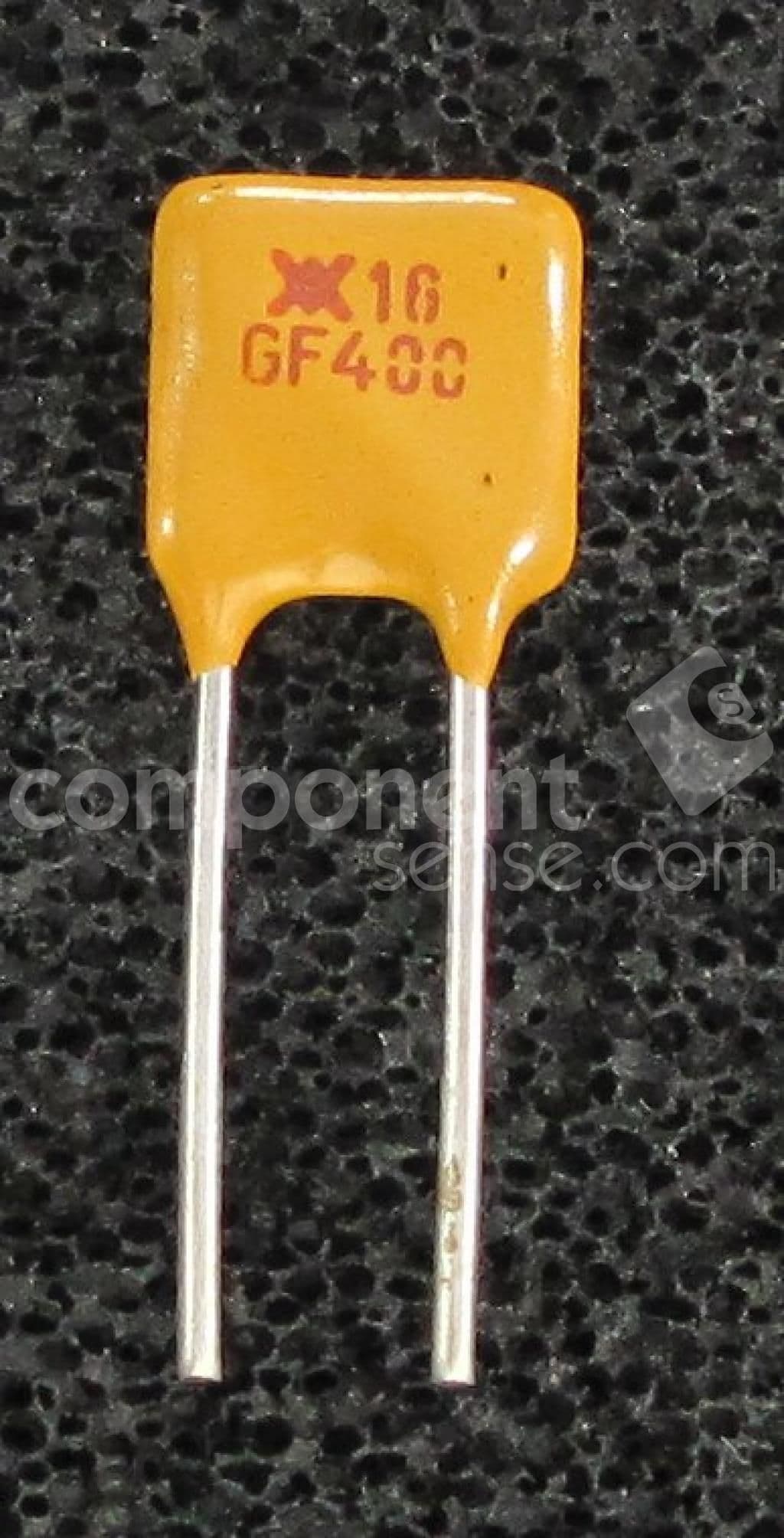

Product Images
