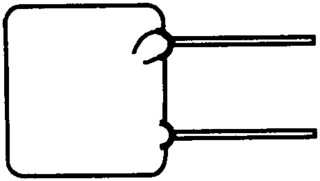

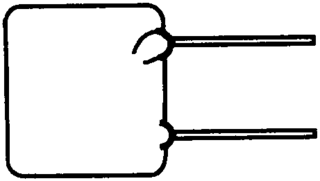

Radial leaded, through-hole mounted resettable fuse with a 7A hold current and 11.9A trip current. Features a 16V DC rated voltage and 3W power dissipation, operating between -40°C and 85°C. Constructed with polymer and epoxy body materials, this component is RoHS compliant and UL, CSA, TUV approved.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the TE Connectivity RGEF700 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
TE Connectivity RGEF700 technical specifications.
| Approvals | UL, CSA, TUV |
| Body Height | 19.7mm |
| Body Length | 11.2mm |
| Body Material | Polymer, Epoxy |
| Package/Case | Radial |
| Current Rating | 7A |
| Hold Current | 7A |
| Lead/Base Style | Straight |
| Max Current Rating | 100A |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Operating Supply Voltage | 16V |
| Package Quantity | 500 |
| Packaging | Bulk |
| Power Dissipation | 3W |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | PolySwitch |
| Size | 19.7mm |
| Termination | Radial |
| Time to Trip | 3.5s |
| Trip Current | 11.9A |
| Voltage Rating | 16V |
| DC Rated Voltage | 16V |
| Wire/Cable Diameter | 0.81mm |
| Working Voltage | 16V |
| RoHS | Compliant |
