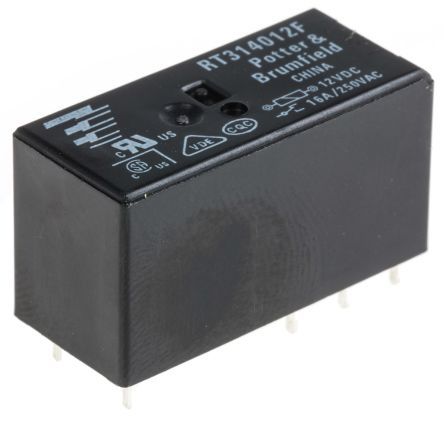

SPDT Power Relay with 16A contact current rating and 250VAC contact voltage rating. Features a 12VDC coil voltage, 360 Ohm coil resistance, and 33.3mA coil current, consuming 400mW. Through-hole mounted with PCB termination, this general-purpose relay operates within a -40°C to 85°C temperature range. Dimensions are 29mm (length) x 12.7mm (width) x 15.7mm (height). RoHS compliant and approved by CSA, VDE, and cULus.
PackageDIP
Current Rating16A
MountingThrough Hole, PCB
Power400mW
Quick Jump:
Technical Specifications
TE Connectivity RT314012F technical specifications.
General
Application(s)
GENERAL PURPOSE
Approvals
CSA, VDE, cULus
Package/Case
DIP
Coil Current
33.3mA
Coil Power
400mW
Coil Resistance
360R
Coil Type
Non-Latching
Coil Voltage (DC)
12V
Contact Current Rating
16A
Contact Material
Silver, Agni90/10
Contact Voltage Rating (AC)
250V
Current Rating
16A
Depth
12.7mm
Height
15.7mm
Length
29mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Voltage Rating (AC)
400V
Mount
Through Hole, PCB
Operate Time
8ms
Package Quantity
20
Packaging
Carton
Power Consumption
400mW
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Relay Type
General Purpose
Release Time
6ms
RoHS Compliant
Yes
Series
RT1
Termination
Plug
Throw Configuration
SPDT
Voltage Rating (AC)
400V
DC Rated Voltage
24V
Weight
0.494oz
Width
12.7mm
Compliance
RoHS
Compliant
Datasheet
TE Connectivity RT314012F Datasheet
Download the complete datasheet for TE Connectivity RT314012F to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
