SPDT general purpose electromechanical relay featuring a 16A contact current rating and 400V AC voltage rating. This through-hole mount component offers a 740mW coil power consumption with a 60V DC or 230V AC coil voltage. Contact material is Silver, Agni90/10, with an operate time of 8ms and release time of 6ms. The relay is RoHS compliant and rated IP54.
PackageDIP
MountingThrough Hole, PCB
Quick Jump:
Technical Specifications
TE Connectivity RT314730 technical specifications.
General
| Application(s) | POWER |
| Approvals | CSA, VDE, cULus |
| Package/Case | DIP |
| Coil Current | 7mA |
| Coil Power | 740mW |
| Coil Resistance | 32.5kR |
| Coil Type | Non-Latching |
| Coil Voltage (AC) | 230V |
| Coil Voltage (DC) | 60V |
| Contact Current Rating | 16A |
| Contact Material | Silver, Agni90/10 |
| Contact Type | 1 change-over |
| Depth | 12.7mm |
| Height | 15.7mm |
| Lead Free | Lead Free |
| Length | 29mm |
| Max Current Rating | 16A |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 400V |
| Mount | Through Hole, PCB |
| Number of Contacts | 1 |
| Operate Time | 8ms |
| Package Quantity | 500 |
| Packaging | Box |
| Radiation Hardening | No |
| Ratings | IP54 |
| Reach SVHC Compliant | Unknown |
| Relay Type | General Purpose |
| Release Time | 6ms |
| RoHS Compliant | Yes |
| Series | RT1, SCHRACK |
| Switching Current | 16A |
| Termination | PC Pin |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 400V |
| Width | 12.7mm |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity RT314730 Datasheet
Download the complete datasheet for TE Connectivity RT314730 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

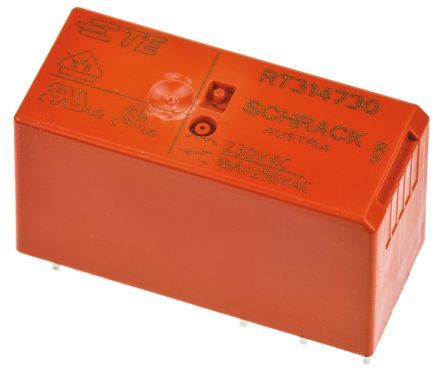

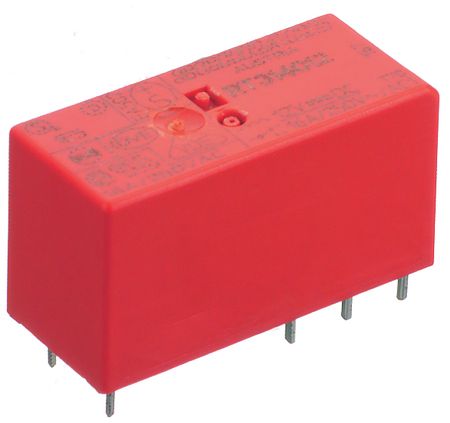

Product Images
