General purpose electromechanical relay featuring a Single Pole Single Throw (SPST) configuration. Coil operates at 24VDC with 400mW power consumption and 16.7mA current. Contact rating supports 16A switching current at 250VAC, with silver contact material. Through-hole mounting with a 5mm pitch and straight termination. Operates within a -40°C to 85°C temperature range.
MountingThrough Hole
Quick Jump:
Technical Specifications
TE Connectivity RT33K024 technical specifications.
General
| Coil Current | 16.7mA |
| Coil Power | 400mW |
| Coil Resistance | 1.44kR |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 24V |
| Contact Current Rating | 16A |
| Contact Material | Silver |
| Contact Voltage Rating (AC) | 250V |
| Dropout Voltage | 2.4V |
| ELV | Compliant |
| Height | 15.7mm |
| Length | 29mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 400V |
| Mount | Through Hole |
| Operate Time | 9ms |
| Packaging | Carton |
| Pitch | 5mm |
| Ratings | IP54 |
| Relay Type | General Purpose |
| Release Time | 6ms |
| RoHS Compliant | Yes |
| Series | RT1, Inrush, SCHRACK |
| Switching Current | 16A |
| Termination | Plug |
| Test Voltage | 5kV |
| Throw Configuration | SPST |
| Weight | 0.494oz |
| Width | 12.7mm |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity RT33K024 Datasheet
Download the complete datasheet for TE Connectivity RT33K024 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

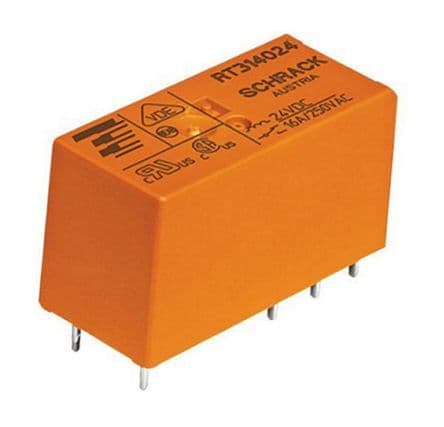

Product Images
