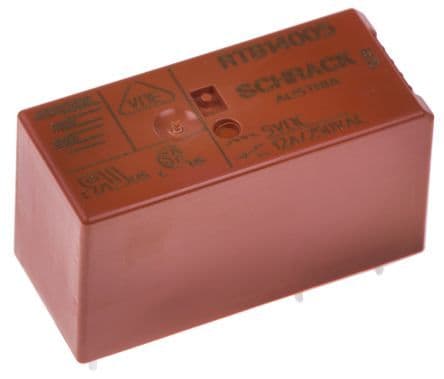

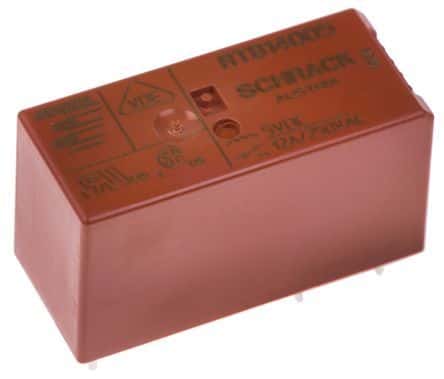

SPDT Power Relay with 5VDC coil voltage, 80.6mA coil current, and 500mW coil power. Features a 12A contact current rating with silver contacts and a 250VAC contact voltage rating. Operates within a temperature range of -40°C to 85°C, with an 8ms operate time and 6ms release time. Dimensions are 29mm (length) x 12.7mm (width) x 15.7mm (height), with a 12.7mm depth. This RoHS compliant relay is designed for general purpose applications and utilizes THT termination.
MountingSocket
Quick Jump:
Technical Specifications
TE Connectivity RTB14005 technical specifications.
General
Application(s)
POWER
Coil Current
80.6mA
Coil Power
500mW
Coil Resistance
62R
Coil Type
Non-Latching
Coil Voltage (DC)
5V
Contact Current Rating
12A
Contact Material
Silver
Contact Voltage Rating (AC)
250V
Depth
12.7mm
Dropout Voltage
500mV
ELV
Compliant
Height
15.7mm
Lead Free
Lead Free
Length
29mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Voltage Rating (AC)
400V
Mount
Socket
Operate Time
8ms
Package Quantity
500
Packaging
Carton
Relay Type
General Purpose
Release Time
6ms
RoHS Compliant
Yes
Series
RT1, SCHRACK
Termination
Plug
Throw Configuration
SPDT
Weight
0.494oz
Width
12.7mm
Compliance
RoHS
Compliant
Datasheet
TE Connectivity RTB14005 Datasheet
Download the complete datasheet for TE Connectivity RTB14005 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
