SPDT general purpose electromechanical relay featuring a 12VDC coil with 400mW power consumption and 33.3mA coil current. Contact ratings include 20A and 24VDC, with silver contact material. This through-hole mount component offers 8ms operate time and 6ms release time, operating within a -40°C to 85°C temperature range. It is RoHS compliant and suitable for power applications.
MountingThrough Hole, PCB
Power400mW
Quick Jump:
Technical Specifications
TE Connectivity RTD14012 technical specifications.
General
| Application(s) | POWER |
| Coil Current | 33.3mA |
| Coil Power | 400mW |
| Coil Resistance | 360R |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 12V |
| Contact Current Rating | 16A |
| Contact Material | Silver |
| Contact Voltage Rating (AC) | 250V |
| Depth | 12.7mm |
| Height | 15.7mm |
| Lead Free | Lead Free |
| Length | 29mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 400V |
| Mount | Through Hole, PCB |
| Operate Time | 8ms |
| Packaging | Carton |
| Power Consumption | 400mW |
| Reach SVHC Compliant | Unknown |
| Relay Type | General Purpose |
| Release Time | 6ms |
| RoHS Compliant | Yes |
| Series | RT1, SCHRACK |
| Termination | Plug |
| Throw Configuration | SPDT |
| Weight | 0.494oz |
| Width | 12.7mm |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity RTD14012 Datasheet
Download the complete datasheet for TE Connectivity RTD14012 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

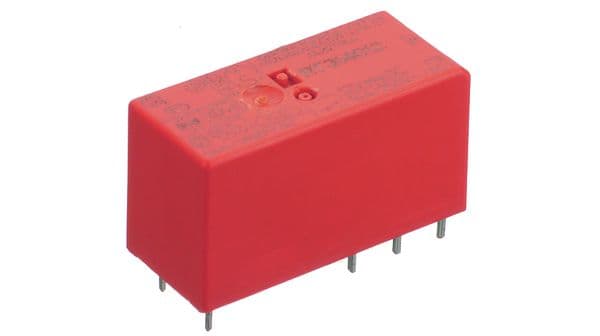

Product Images
