Radial leaded, through-hole mount resettable fuse with 0.05 ohm resistance. Features a 5A hold current and 10A trip current, with a maximum current rating of 100A. Operates within a temperature range of -40°C to 85°C and has a DC rated voltage of 30V. Compliant with UL, CSA, and TUV approvals, as well as RoHS and ELV standards. Power dissipation is 3W.
PackageRadial
Storage24.1mm
Voltage Rating30V
Power3W
Quick Jump:
Technical Specifications
TE Connectivity RUEF500-2 technical specifications.
General
| Approvals | UL, CSA, TUV |
| Package/Case | Radial |
| ELV | Compliant |
| Height | 24.1mm |
| Hold Current | 5A |
| Lead Free | Lead Free |
| Max Current Rating | 100A |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Operating Supply Voltage | 30V |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Power Dissipation | 3W |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | PolySwitch® |
| Size | 24.1mm |
| Thickness | 3mm |
| Time to Trip | 14.5s |
| Trip Current | 10A |
| DC Rated Voltage | 30V |
| Width | 14mm |
| Working Voltage | 30V |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity RUEF500-2 Datasheet
Download the complete datasheet for TE Connectivity RUEF500-2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

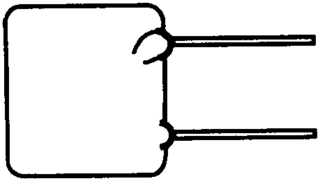

Product Images
