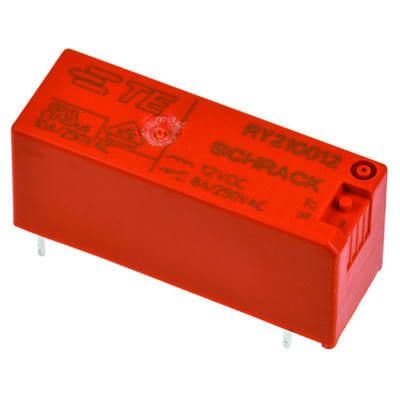

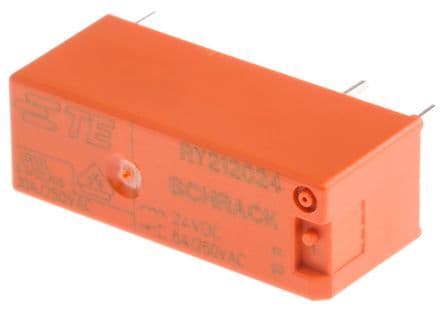

General purpose SPDT power relay featuring an 8A contact current rating and 250VAC contact voltage rating. Coil specifications include 24VDC, 300mW coil power, and 10.2mA coil current. This through-hole mount component offers silver/gold contact material with gold plating and operates within a -40°C to 70°C temperature range. Approvals include UL, CSA, and VDE, with RoHS compliance.
Current Rating8A
MountingThrough Hole, PCB
Quick Jump:
Technical Specifications
TE Connectivity RY212024 technical specifications.
General
Application(s)
POWER
Approvals
UL, CSA, VDE
Coil Current
10.2mA
Coil Power
300mW
Coil Resistance
2.35kR
Coil Type
Non-Latching
Coil Voltage (DC)
24V
Contact Current Rating
8A
Contact Material
Silver, Gold
Contact Plating
Gold
Contact Voltage Rating (AC)
250V
Current Rating
8A
Depth
10.1mm
Dropout Voltage
2.4V
ELV
Compliant
Height
0.484inch
Lead Free
Lead Free
Length
1.122inch
Max Operating Temperature
70°C
Min Operating Temperature
-40°C
Max Voltage Rating (AC)
400V
Mount
Through Hole, PCB
Number of Contacts
1
Operate Time
9ms
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Relay Type
General Purpose
Release Time
5ms
RoHS Compliant
Yes
Series
RY, SCHRACK
Termination
PCB
Throw Configuration
SPDT
DC Rated Voltage
24V
Weight
0.282oz
Width
10.1mm
Compliance
RoHS
Compliant
Datasheet
TE Connectivity RY212024 Datasheet
Download the complete datasheet for TE Connectivity RY212024 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
