TE Connectivity
SBCHE15330RJ
RESISTOR, WIRE WOUND, 17W, 5%, 200ppm, 330ohm, THROUGH HOLE MOUNT, AXIAL LEADED, ROHS COMPLIANT
PackageRadial
Resistance330R
Voltage Rating74.9V
MountingAxial
Quick Jump:
Technical Specifications
TE Connectivity SBCHE15330RJ technical specifications.
General
| Package/Case | Radial |
| Depth | 9mm |
| ELV | Compliant |
| Height | 10mm |
| Length | 75mm |
| Max Operating Temperature | 350°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 17W |
| Mount | Axial |
| Number of Resistors | 1 |
| Number of Terminations | 2 |
| Packaging | Loose Piece |
| Reach SVHC Compliant | Unknown |
| Resistance | 330R |
| Resistance Tolerance | 5% |
| Resistor Type | Wirewound, Power resistor |
| RoHS Compliant | Yes |
| Series | SBC, CGS |
| Technology | WIRE WOUND |
| Termination | Axial |
| Tolerance | 5% |
| Voltage Rating | 74.9V |
| DC Rated Voltage | 74.9V |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity SBCHE15330RJ Datasheet
Download the complete datasheet for TE Connectivity SBCHE15330RJ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

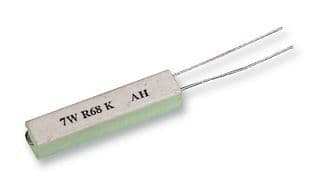

Product Images
