Wirewound power resistor, 1.5 ohm resistance with 10% tolerance. Features 4W maximum power dissipation and axial leaded, through-hole mounting. Operates across a wide temperature range from -55°C to 350°C. Compliant with RoHS standards.
PackageRadial
Resistance1.5R
Voltage Rating2.5V
MountingAxial
Quick Jump:
Technical Specifications
TE Connectivity SBCHE41R5K technical specifications.
General
| Package/Case | Radial |
| Depth | 7mm |
| ELV | Compliant |
| Height | 8mm |
| Lead/Base Style | Axial |
| Length | 20mm |
| Max Operating Temperature | 350°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 4W |
| Mount | Axial |
| Number of Resistors | 1 |
| Number of Terminations | 2 |
| Package Quantity | 100 |
| Packaging | Loose Piece |
| Reach SVHC Compliant | Unknown |
| Resistance | 1.5R |
| Resistance Tolerance | 10% |
| Resistor Type | Wirewound, Power resistor |
| RoHS Compliant | Yes |
| Series | SBC, CGS |
| Technology | WIRE WOUND |
| Termination | Axial |
| Tolerance | 10% |
| Voltage Rating | 2.5V |
| DC Rated Voltage | 2.5V |
| Width | 7mm |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity SBCHE41R5K Datasheet
Download the complete datasheet for TE Connectivity SBCHE41R5K to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

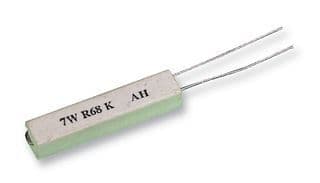

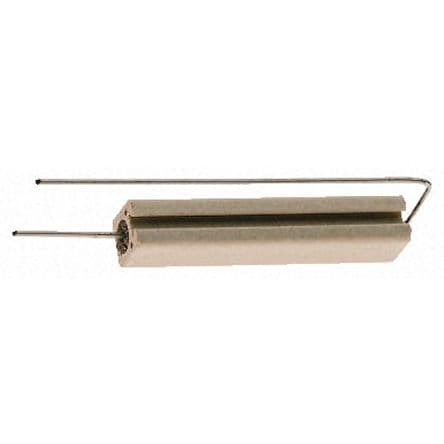

Product Images
