Wirewound power resistor with 10kR resistance and 5% tolerance. Features 7W maximum power dissipation and axial leaded, through-hole mounting. Operates across a temperature range of -55°C to 350°C with a voltage rating of 264.6V. Housed in a ceramic package with axial terminations.
PackageCeramic
Resistance10kR
Voltage Rating264.6V
MountingAxial
Quick Jump:
Technical Specifications
TE Connectivity SBCHE610KJ technical specifications.
General
| Package/Case | Ceramic |
| Depth | 7mm |
| Diameter | 7mm |
| ELV | Compliant |
| Height | 8mm |
| Lead Diameter | 0.8mm |
| Lead/Base Style | Axial |
| Length | 38mm |
| Max Operating Temperature | 350°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 7W |
| Military Standard | Not |
| Mount | Axial |
| Number of Resistors | 1 |
| Number of Terminations | 2 |
| Package Quantity | 100 |
| Packaging | Loose Piece |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Resistance | 10kR |
| Resistance Tolerance | 5% |
| Resistor Type | Wirewound, Power resistor |
| RoHS Compliant | Yes |
| Series | BCHE |
| Technology | WIRE WOUND |
| Termination | Axial |
| Tolerance | 5% |
| Voltage Rating | 264.6V |
| DC Rated Voltage | 265V |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity SBCHE610KJ Datasheet
Download the complete datasheet for TE Connectivity SBCHE610KJ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

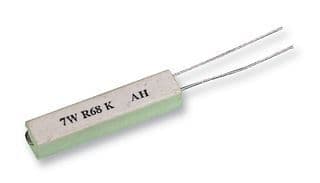

Product Images
