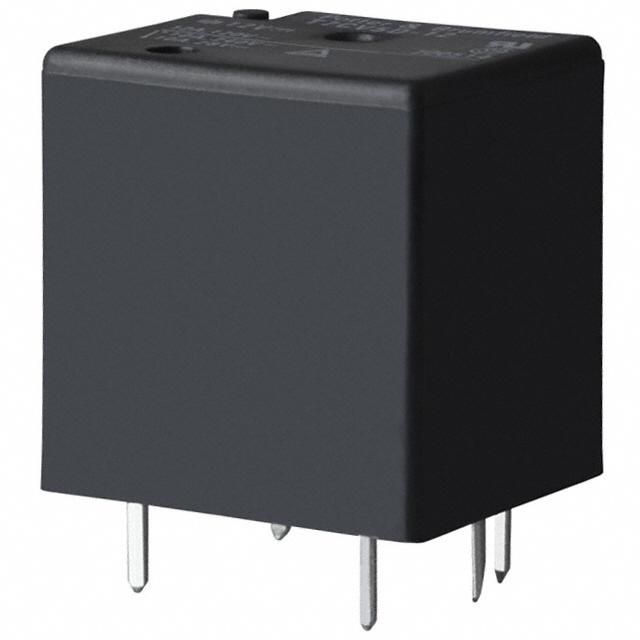

SPDT power relay with a 24VDC coil voltage and 10A contact current rating. Features a 240V AC maximum voltage rating and 10A maximum current rating. Operates within a -30°C to 85°C temperature range. Through-hole mounting with PC pin termination. RoHS compliant and UL/CSA approved.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the TE Connectivity T7CS5D-24 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
TE Connectivity T7CS5D-24 technical specifications.
| Approvals | UL, CSA |
| Coil Current | 15mA |
| Coil Power | 360mW |
| Coil Resistance | 1.6kR |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 24V |
| Contact Current Rating | 10A |
| Contact Material | Silver, Cadmium |
| Current Rating | 12A |
| Depth | 16.5mm |
| ELV | Non-Compliant |
| Height | 20.2mm |
| Lead Free | Lead Free |
| Max Current Rating | 10A |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -30°C |
| Max Voltage Rating (AC) | 240V |
| Max Voltage Rating (DC) | 24V |
| Mount | Through Hole, PCB |
| Operate Time | 10ms |
| Package Quantity | 25 |
| Packaging | Rail/Tube |
| Power Consumption | 360mW |
| Radiation Hardening | No |
| Relay Type | General Purpose |
| Release Time | 5ms |
| RoHS Compliant | Yes |
| Series | T7C, Potter & Brumfield |
| Termination | PC Pin |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 240V |
| Width | 16.5mm |
| RoHS | Compliant |
