DPDT Power Relay with 30A contact current rating and 600V AC voltage rating. Features a 24VDC coil with 68.57mA current and 1.7W power consumption. Through-hole mounting with PC pin termination, suitable for PCB applications. Operates within a -55°C to 85°C temperature range.
Current Rating30A
MountingThrough Hole, PCB
Power1.7W
Quick Jump:
Technical Specifications
TE Connectivity T92S11D12-24 technical specifications.
General
Application(s)
POWER
Coil Current
68.57mA
Coil Power
1.7W
Coil Resistance
350R
Coil Type
Non-Latching
Coil Voltage (AC)
24V
Coil Voltage (DC)
24V
Contact Current Rating
30A
Contact Material
Silver, Cadmium
Current Rating
30A
Depth
34.54mm
ELV
Non-Compliant
Height
30.7mm
Lead Free
Lead Free
Length
52.32mm
Max Operating Temperature
85°C
Min Operating Temperature
-55°C
Max Voltage Rating (AC)
600V
Mount
Through Hole, PCB
Number of Contacts
2
Operate Time
25ms
Packaging
Bulk
Power Consumption
1.7W
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Relay Type
General Purpose
Release Time
15ms
RoHS Compliant
Yes
Series
T92
Switching Current
40A
Termination
PC Pin
Throw Configuration
DPDT
Voltage Rating (AC)
600V
DC Rated Voltage
24V
Width
34.5mm
Compliance
RoHS
Compliant
Datasheet
TE Connectivity T92S11D12-24 Datasheet
Download the complete datasheet for TE Connectivity T92S11D12-24 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

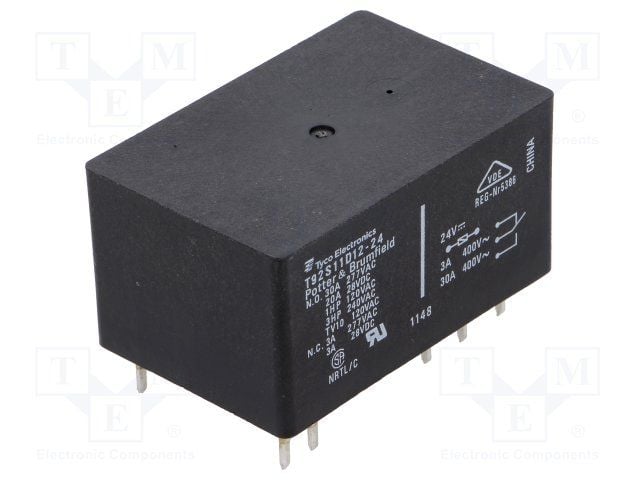

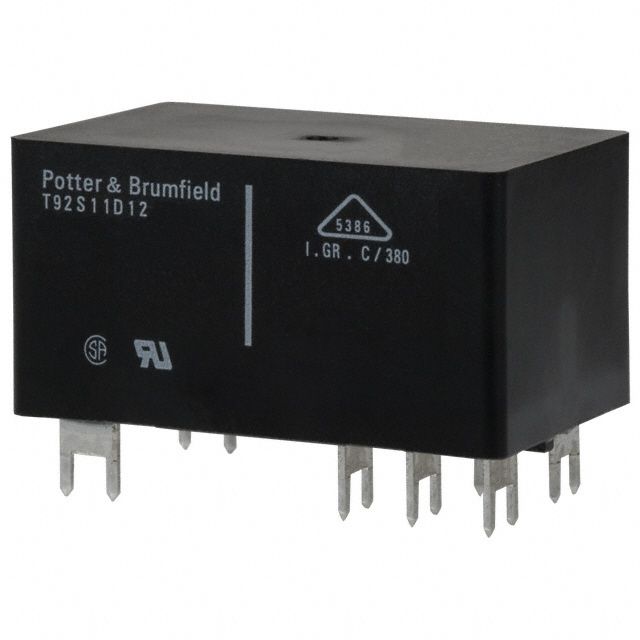

Product Images
