SPST-NO power relay featuring a 5VDC coil with 1W power consumption and 200mA coil current. Contact ratings include 30A current and 277VAC voltage, with Silver, Cadmium contact material. Through-hole mounting for PCB applications, with 15ms operate and release times. Operating temperature range from -55°C to 85°C.
Current Rating30A
MountingThrough Hole, PCB
Power1W
Quick Jump:
Technical Specifications
TE Connectivity T9AS1D22-5 technical specifications.
General
Application(s)
POWER
Approvals
UL, CSA
Coil Current
200mA
Coil Power
1W
Coil Resistance
25R
Coil Type
Non-Latching
Coil Voltage (DC)
5V
Contact Current Rating
30A
Contact Material
Silver, Cadmium
Contact Voltage Rating (AC)
277V
Current Rating
30A
Depth
27.43mm
ELV
Non-Compliant
Height
1.098inch
Lead Free
Lead Free
Length
32.5mm
Max Operating Temperature
85°C
Min Operating Temperature
-55°C
Max Voltage Rating (AC)
277V
Mount
Through Hole, PCB
Number of Poles
1
Operate Time
15ms
Packaging
Bulk
Power Consumption
1W
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Relay Type
General Purpose
Release Time
15ms
RoHS Compliant
Yes
Series
T9A
Termination
Quick Connect
Throw Configuration
SPST
Voltage Rating (AC)
277V
Weight
33g
Width
27.4mm
Compliance
RoHS
Compliant
Datasheet
TE Connectivity T9AS1D22-5 Datasheet
Download the complete datasheet for TE Connectivity T9AS1D22-5 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

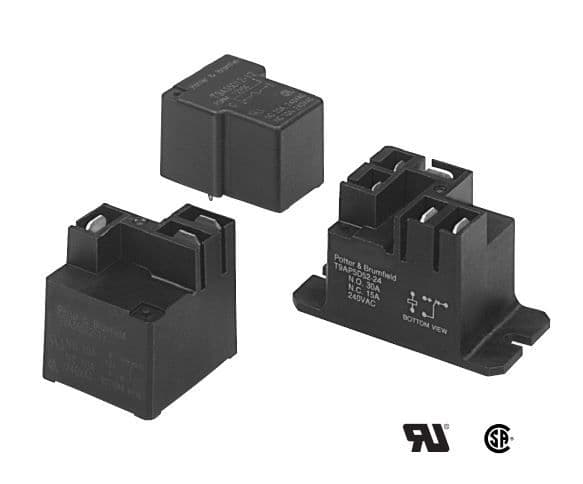

Product Images
