SPDT Electromechanical Relay featuring a 5VDC coil with 1W power and 25 Ohm resistance. Contact ratings include 20A for Normally Open (NO) and 10A for Normally Closed (NC) configurations, with a maximum AC voltage rating of 277V and DC voltage rating of 28V. This general-purpose relay offers a 15ms operate and release time, operates within a -55°C to 85°C temperature range, and utilizes through-hole PCB mounting.
Current Rating30A
MountingThrough Hole, PCB
Quick Jump:
Technical Specifications
TE Connectivity T9AS5D12-5 technical specifications.
General
| Coil Current | 200mA |
| Coil Power | 1W |
| Coil Resistance | 25R |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 5V |
| Contact Current Rating | 20A |
| Contact Material | Silver, Cadmium |
| Contact Voltage Rating (AC) | 277V |
| Current Rating | 30A |
| Height | 20.4mm |
| Length | 32.5mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -55°C |
| Max Voltage Rating (AC) | 277V |
| Max Voltage Rating (DC) | 28V |
| Mount | Through Hole, PCB |
| Operate Time | 15ms |
| Packaging | Bulk |
| Relay Type | General Purpose |
| Release Time | 15ms |
| RoHS Compliant | Yes |
| Series | T9A |
| Termination | PCB |
| Throw Configuration | SPDT |
| DC Rated Voltage | 5V |
| Weight | 0.918oz |
| Width | 27.4mm |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity T9AS5D12-5 Datasheet
Download the complete datasheet for TE Connectivity T9AS5D12-5 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

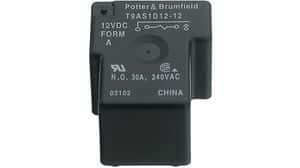

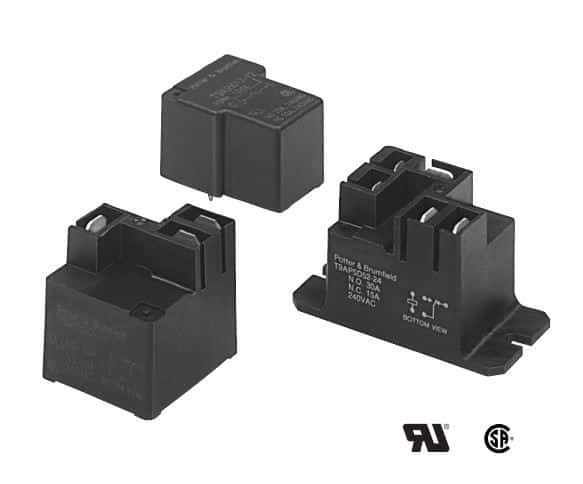

Product Images
