Chassis mount wirewound power resistor with 150 Ohm resistance and 5% tolerance. Features a 10W power rating, 160V DC rated voltage, and operates across a -55°C to 275°C temperature range. Housed in aluminum with axial terminations, this resistor is RoHS compliant.
PackageAluminum
Resistance150R
Voltage Rating160V
MountingChassis Mount
Quick Jump:
Technical Specifications
TE Connectivity THS10150RJ technical specifications.
General
Package/Case
Aluminum
ELV
Compliant
Height
9mm
Lead Length
7mm
Lead/Base Style
Fixed
Length
17mm
Max Operating Temperature
275°C
Min Operating Temperature
-55°C
Max Power Dissipation
10W
Mount
Chassis Mount
Number of Resistors
1
Number of Terminations
2
Package Quantity
100
Packaging
Tray
Reach SVHC Compliant
Unknown
Resistance
150R
Resistance Tolerance
5%
Resistor Type
Wirewound, Power resistor
RoHS Compliant
Yes
Series
THS
Technology
WIRE WOUND
Termination
Solder
Tolerance
5%
Voltage Rating
160V
DC Rated Voltage
160V
Width
17mm
Compliance
RoHS
Compliant
Datasheet
TE Connectivity THS10150RJ Datasheet
Download the complete datasheet for TE Connectivity THS10150RJ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

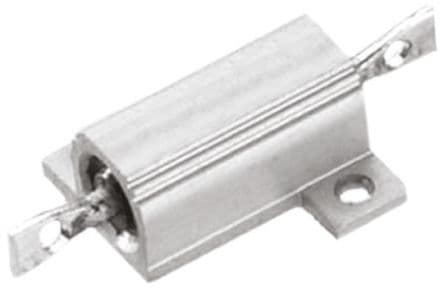

Product Images
