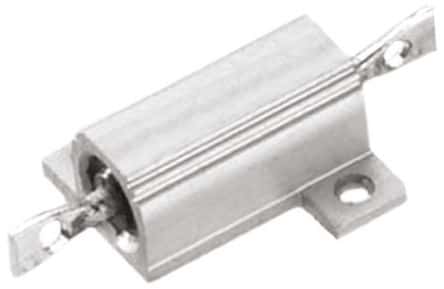

Wirewound power resistor, 10W, 50 Ohm resistance with 5% tolerance. Features chassis mount design, 160V DC rated voltage, and a maximum operating temperature of 275°C. Constructed with wire wound technology and solder terminations. Compliant with RoHS and ELV standards.
Resistance50R
Voltage Rating160V
MountingChassis Mount
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the TE Connectivity THS1050RJ datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
TE Connectivity THS1050RJ technical specifications.
General
| ELV | Compliant |
| Height | 9mm |
| Lead Length | 7mm |
| Lead/Base Style | Fixed |
| Length | 17mm |
| Max Operating Temperature | 275°C |
| Min Operating Temperature | -55°C |
| Mount | Chassis Mount |
| Number of Resistors | 1 |
| Number of Terminations | 2 |
| Package Quantity | 100 |
| Packaging | Tray |
| Reach SVHC Compliant | Unknown |
| Resistance | 50R |
| Resistance Tolerance | 5% |
| Resistor Type | Wirewound, Power resistor |
| RoHS Compliant | Yes |
| Series | THS |
| Technology | WIRE WOUND |
| Termination | Solder |
| Tolerance | 5% |
| Voltage Rating | 160V |
| DC Rated Voltage | 160V |
| Width | 17mm |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity THS1050RJ Datasheet
Download the complete datasheet for TE Connectivity THS1050RJ to view detailed technical specifications.
