Wirewound power resistor, 10W, 0.33 ohm resistance with 5% tolerance. Features chassis mount design, 2 terminations, and axial package with 7mm lead length. Operates across a wide temperature range from -55°C to 275°C, with a voltage rating of 160V. RoHS compliant and ELV compliant.
PackageAxial
Resistance330mR
Voltage Rating160V
MountingChassis Mount
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the TE Connectivity THS10R33J datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
TE Connectivity THS10R33J technical specifications.
General
| Body Length | 17mm |
| Package/Case | Axial |
| ELV | Compliant |
| Height | 9mm |
| Lead Length | 7mm |
| Lead/Base Style | Fixed |
| Length | 17mm |
| Max Operating Temperature | 275°C |
| Min Operating Temperature | -55°C |
| Mount | Chassis Mount |
| Number of Resistors | 1 |
| Number of Terminations | 2 |
| Package Quantity | 100 |
| Packaging | Tray |
| Resistance | 330mR |
| Resistance Tolerance | 5% |
| Resistor Type | Wirewound, Power resistor |
| RoHS Compliant | Yes |
| Series | THS10 |
| Technology | WIRE WOUND |
| Termination | Solder |
| Tolerance | 5% |
| Voltage Rating | 160V |
| Voltage Rating (AC) | 160V |
| DC Rated Voltage | 160V |
| Width | 17mm |
| Working Voltage | 160V |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity THS10R33J Datasheet
Download the complete datasheet for TE Connectivity THS10R33J to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

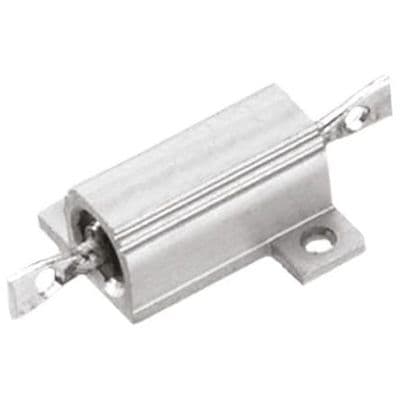

Product Images
