Wirewound power resistor, 15W, 5 ohm resistance with 5% tolerance. Features chassis mount capability, 265V DC rated voltage, and a wide operating temperature range of -55°C to 200°C. Encased in aluminum, this component offers 50ppm TCR and is RoHS compliant.
PackageAluminum
Resistance5R
Voltage Rating265V
MountingChassis Mount
Quick Jump:
Technical Specifications
TE Connectivity THS155R0J technical specifications.
General
Package/Case
Aluminum
ELV
Compliant
Height
11mm
Lead Length
7mm
Lead/Base Style
Fixed
Length
21mm
Max Operating Temperature
200°C
Min Operating Temperature
-55°C
Max Power Dissipation
15W
Mount
Chassis Mount
Number of Resistors
1
Number of Terminations
2
Package Quantity
100
Packaging
Tray
Reach SVHC Compliant
Unknown
Resistance
5R
Resistance Tolerance
5%
Resistor Type
Wirewound, Power resistor
RoHS Compliant
Yes
Series
THS, CGS
Technology
WIRE WOUND
Termination
Solder
Tolerance
5%
Voltage Rating
265V
DC Rated Voltage
265V
Width
21mm
Compliance
RoHS
Compliant
Datasheet
TE Connectivity THS155R0J Datasheet
Download the complete datasheet for TE Connectivity THS155R0J to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

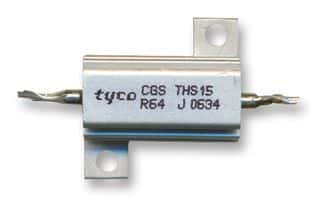

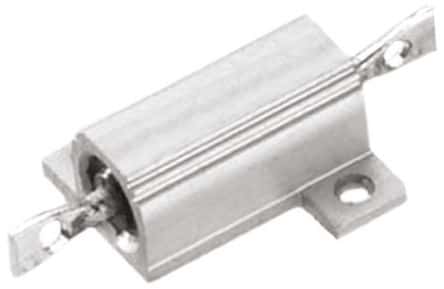

Product Images
