TE Connectivity
TL3AR015F
RESISTOR, CURRENT SENSE, METAL FOIL, 1W, 1%, 75ppm, 0.015ohm, SURFACE MOUNT, 2512, CHIP, ROHS COMPLIANT
Package2512
Resistance15mR
MountingSurface Mount
Quick Jump:
Technical Specifications
TE Connectivity TL3AR015F technical specifications.
General
Case Code (Imperial)
2512
Case Code (Metric)
6432
Package/Case
2512
Depth
3.2mm
ELV
Compliant
Height
0.6mm
Length
6.4mm
Max Operating Temperature
170°C
Min Operating Temperature
-65°C
Max Power Dissipation
1W
Mount
Surface Mount
Number of Resistors
1
Number of Terminations
2
Packaging
Tape and Reel
Reach SVHC Compliant
Unknown
Resistance
15mR
Resistance Tolerance
1%
Resistor Type
Metal Film
RoHS Compliant
Yes
Series
TL, CGS
Technology
METAL FOIL
Termination
Solder
Tolerance
1%
Compliance
RoHS
Compliant
Datasheet
TE Connectivity TL3AR015F Datasheet
Download the complete datasheet for TE Connectivity TL3AR015F to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

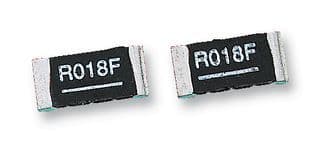

Product Images
